Beschreibung

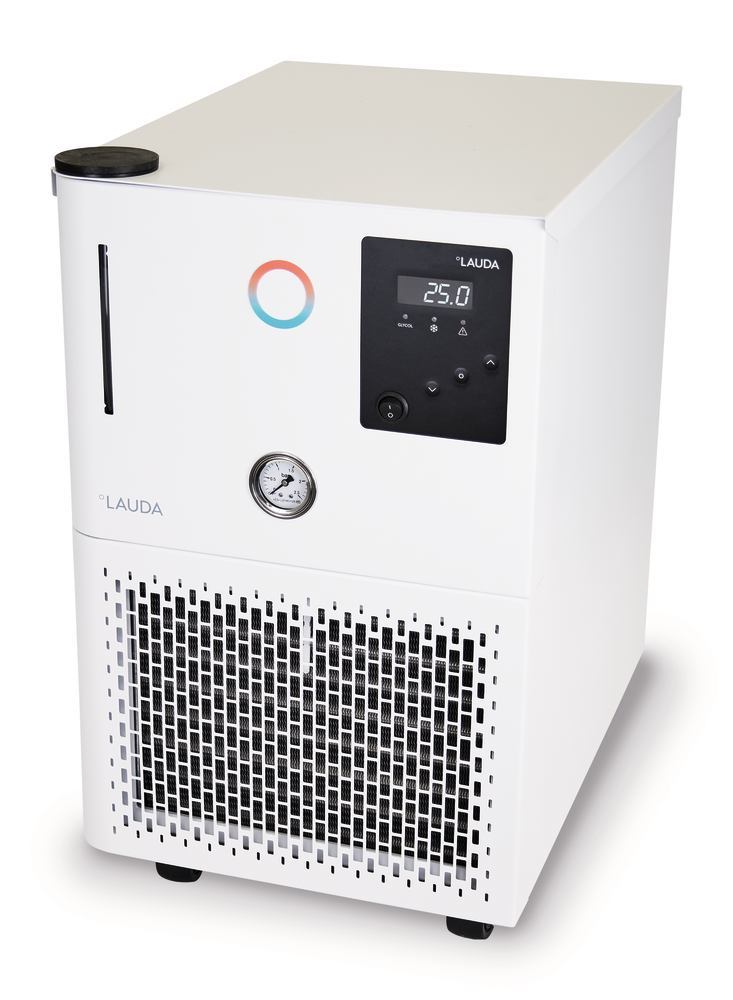

Rotary cooler Microcool MC 1200, working temp. -10 to 40 °C, 1200 W/20 °C
Applications: cooling of rotary evaporators, distillation systems and analytical apparatus, as well as supply of cold traps.
- LED temperature display, display resolution 0.1 °C
- Time-controlled starting and shutdown of the circulation chiller (Auto-Start or Auto-Shut-Down-Timer)
- Illuminated sight glass for checking the thermostating liquid level
- Filler neck on top of apparatus at front
- Removable front grid for cleaning the condenser
- RS 232 interface
With additional features:
- Bypass adjusting wheel for regulating the pump pressure
- Pressure gauge for displaying the pump pressure
- Four rollers with holding brakes
Delivery incl. pump connection socket 10 mm (model MC 250). For the models MC 600 and MC 1200, two 10 mm hose fittings with union nut G 3/4″ are still required. Please order separately.
Technical Information
| Type | MC 1200 |
| Operating temperature | -10 to +40 °C |
| Temperature constancy | ±0,5 K |
| Display resolution | 0,1 °C |
| Heating output | 0 W |
| Cooling capacity | 20 °C: 1200 W 10 °C: 1050 W 0 °C: 750 W -10 °C: 400 W |
| Max. pump pressure | 1300 mbar |
| Max. flow | 35 l/min |
| Bath volume | 7-14 l |
| Outer width | 450 mm |
| Outer depth | 550 mm |
| Outer height | 650 mm |
| Timer | 1 min to 99 h, 59 min |
| Weight | 64 kg |
| Mains connection | 230 V, 50 Hz |
