Description

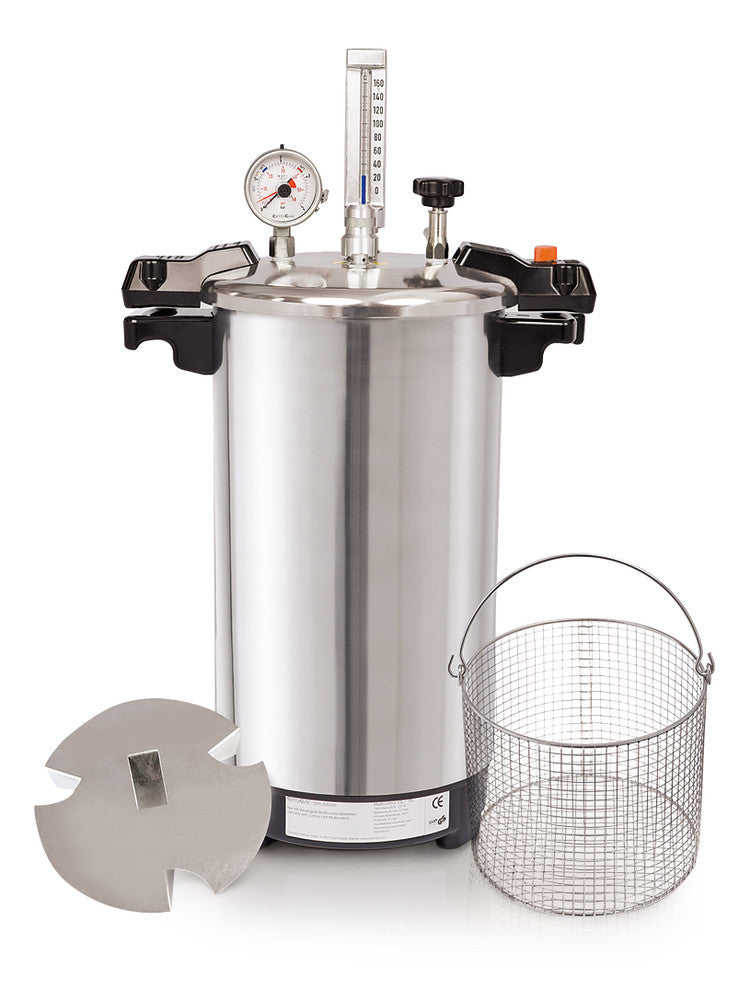

Benchtop steam steriliser CertoClav, EL 12L, 125/140°C with 1.4/2.7 bar
With aluminium chamber. For steam heating of substances and use in research & development.Applications: preparation of nutrient media, as well as sterilisation of waste, utensils, bottles and instruments.
Features:
- Bayonet lock for lid lock
- Quadruple pressure safety: safety lock to prevent opening under pressure, antilock safety valve, pressure relief valve and pressure relief vent
- Pressure regulation by control valve
- Alternate versions with different temperature / pressure levels 125/140 °C or 115/121 °C are available
Delivery incl. precision pressure gauge with maximum drag pointer, precision thermometer, one wire basket (for Art. No. TL63.1 and TL64.1, 2 wire baskets can be incorporated, please order separately if required) and aluminium Instrument plate (Ø 225 mm, H 40 mm) with three feet as baseplate above the water.
Technical Information
| Type | EL 12L |
| Vol. | 12 l |
| Temperature stage | 125/140 °C |
| Pressure level | 1,4/2,7 bar |
| Test pressure | 4.1 bar |
| Ventilation method | flow method |
| Inner height | 230 mm |
| Ø internal | 240 mm |
| Outer height | 535 mm |
| Ø external | 250 mm |
| Diagonal | 350 mm |
| Max. wire basket capacity | 1 unit(s) |
| Temperature measuring range | 0 to +160 °C |
| Temperature resolution | 2 °C |
| Pressure measuring range | 0 to 4 bar |
| Graduation | 0,1 bar |
| Exhaust steam valve outflow | Ø 10 mm |
| Power consumption | 1900 W |
| Weight | 7 kg |
| Mains connection | 230 V, 50/60 Hz |
