Description

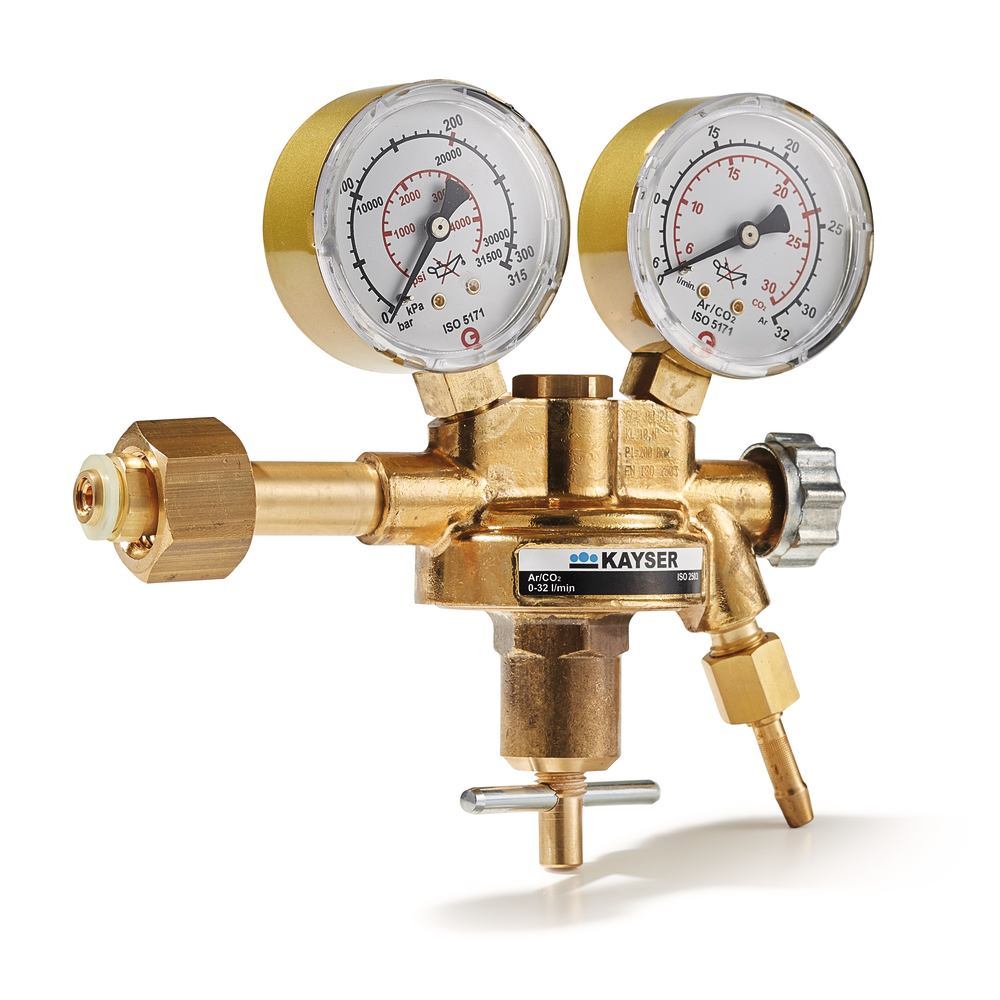

Bottle pressure regulator, one stage, brass, Ar/CO2, 0-24/23 l/mi
Material: brass.
For safe removal of gas from steel bottles up to 200 bar, while simultaneously reducing the required working pressure to 10 bar.
- Manufactured according to EN ISO 2503
- With safety valve (triggers at 12 bar)
Working pressure gauge with double scale (l/min and bar)
Technical Information
| Gas type | Noble gases/CO2 |
| Upstream pressure, max. | 200 bar |
| Back pressure | CO2: 0-23 l/min, Ar: 0-24 l/min |
| Readability | 1 l/min |
| Bottle connection | W 21.8 x 1/14″ right |
| Tube connection | G 1/4″ right |
| Operating temperature | -20 to +60 °C |
| L x W x H | 180 x 65 x 170 mm |
| Weight | 1,7 kg |
