Description

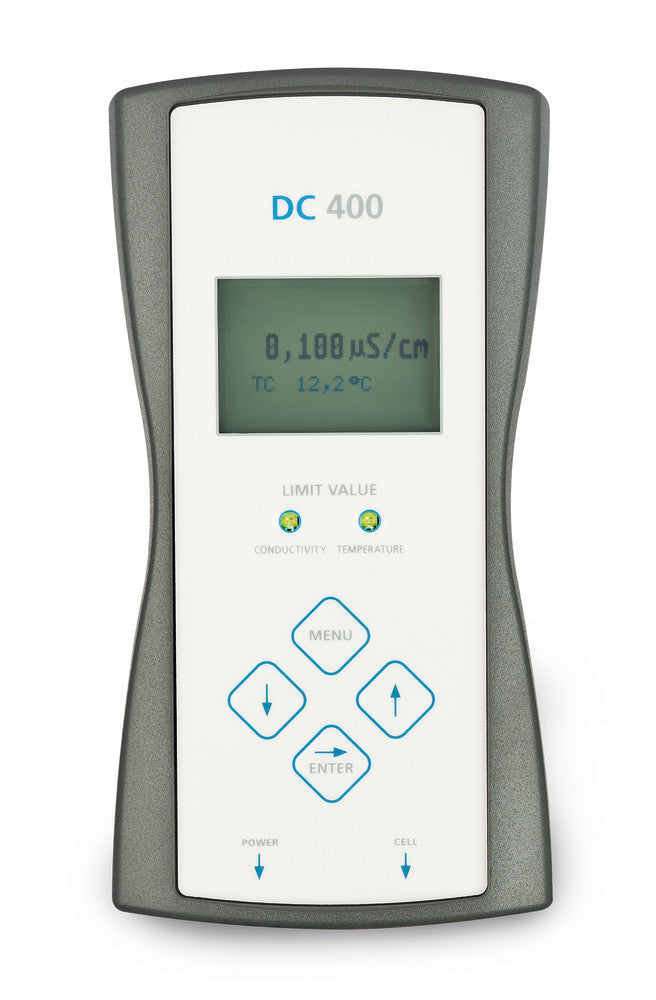

DC 400 digital conductivity meter, for DS 1500-4000 ion exchangers, incl. connecting cable, plug-in power supply, measuring cell and tube set 2 x 1,5 m R 3/4 inch and wall mount
Suitable for ion exchangers DS 1500 to DS 4000. Conductivity measuring range 0.1 to 300 μS/cm (automatic switchover at 9.99). For the online measurement of pure and ultrapure water downstream of ion exchanger cartridges and for monitoring closed-loop systems. For wall mounting.
- Large two-colour backlit graphic display for digitally displaying the conductivity in µS/cm or in MΩ x cm and the temperature in °C
- Continuous adjustment of the limit values for temperature (from 10 to 40 °C) and conductivity (from 0.1 to 30 µS/cm)
- Signals for exceeded limits for temperature and conductivity: LED display green/red + buzzer (both limit values can be deactivated)
- Signals for fault message: display switch-over green/red
- Automatic comparison before each measurement using an integrated reference resistor and temperature measurement using platinum temperature sensor
- Automatic voltage switching for international use
Delivery incl. connecting cable, plug-in power supply, measuring cell and tube set consisting of 2 x 1.5 m tubes with R 3/4″-connections and wall mount.
Technical Information
| Type | DC 400 |
| Conductivity measuring range from | 0.1 µS/cm |
| Conductivity measuring range up to | 300 µS/cm |
| Temperature measuring range from | 0.1 °C |
| Temperature measuring range up to | 99.9 °C |
| Temp. compensation | automatic |
| Width | 73 mm |
| Depth | 32 mm |
| Height | 141 mm |
| Connection | 3/4″ |
| IP rating | 54 |
| Mains connection | 110/230 V, 50/60 Hz |
