Description

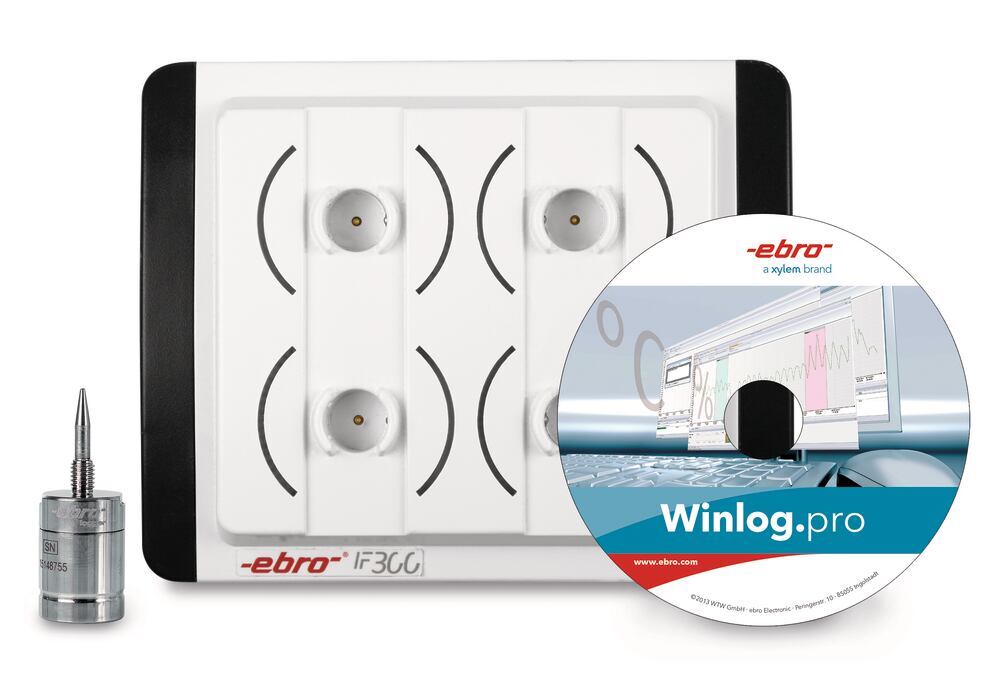

EBI 11 T-210 data logger in a set, for temperature, includes IF 300 interface, software, calibration certificate and batteries. Contains LITHIUM-ION CELLS. Not subject to labelling according to ADR SV188., UN-Nr. 3091
For temperature monitoring/checking in the food and pharmaceutical industries. With factory calibration certificate.
Application: pasteurisation monitoring, food safety, determining PE values, determining F0 values.
- An M5 thread is provided for fastening the sensor to the product
- The logger is powered by replaceable lithium batteries (temperature-resistant)
- The interface is used to connect it to a PC (USB interface)
- The Windows-compatible software is required to program the logger and to read out and print the data
General-purpose use. Thanks to its small, compact design, the logger can be inserted directly into the product.
Delivery incl. IF 300 interface, software, calibration certificate and batteries.
Technical Information
| Type | EBI 11-T210 set |
| Calibration | factory calibration (test points: 0, +60, +134 °C) |
| Parameters | temperature |
| Temperature measuring range | -30 to +140 °C |
| Temperature resolution | 0.01 °C |
| Temperature accuracy | ±0.2 °C (-30 to 0 °C) ±0.1 °C (0 to +140 °C) |
| Sensor type | Pt 1000, class A |
| Data memory | 15,000 measured values |
| Measuring cycle | 1 s to 24 h |
| IP rating | 68 |
| Ø x H | 16.5 x 24 mm |
| Sensor: Ø x L | 3 x 20 mm |
| Power supply | 2x BR 1225 button cell (3 V) |
