Description

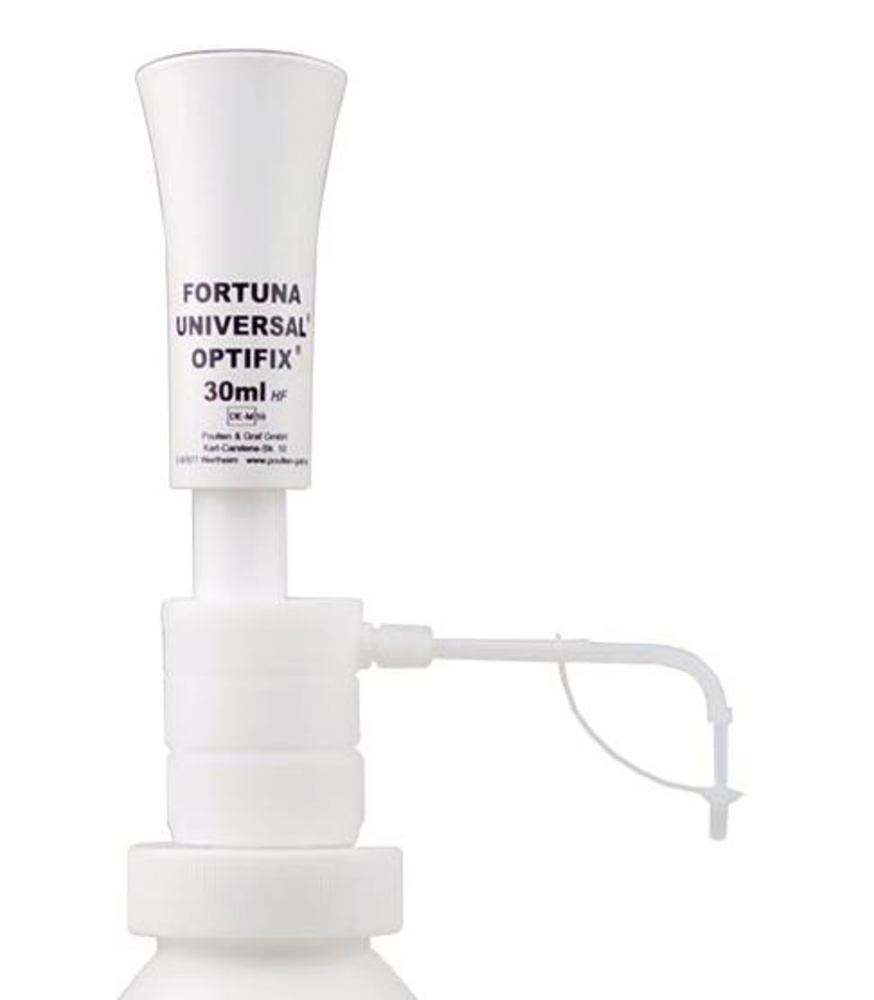

FORTUNA® OPTIFIX® HF dispenser, capacity 5 - 30 ml, incl. dispensing syringe set, suction hose made of PTFE, two GL 40 and GL 45 threaded adapters made of PTFE
Autoclavable: yes.
Properties:
- Ergonomic design with colour-code system
- Resistant to abrasion, UV radiation, acids and acid vapours
- Valve block without metal springs; no contamination of the dispensed liquid
- Quick volume adjustment with easy action and additional rotatable fine adjustment
- Visually recognisable dosing direction
- Screws directly onto bottle with thread GL 32
- Easy to dismantle and clean
- Conformity testing acc. to DIN EN ISO 8655-5
With robust PTFE-encased dispensing plunger, dispensing cylinder made of PTFE. For dispensing highly aggressive and toxic chemicals (e.g. hydrofluoric acid).
Delivery incl. PTFE intake hose and two PTFE thread adapters.
Technical Information
| Volume | 5-30 ml |
| Graduation | 0,5 ml |
| Nominal volume | 30 ml |
| Correctness | ±180 µl |
| Variation coefficient | ±60 µl |
| Operating temperature | +15 - +35 °C |
| Adapter | GL 40, GL 45 |
| Suction tube length | 350 mm |
