Description

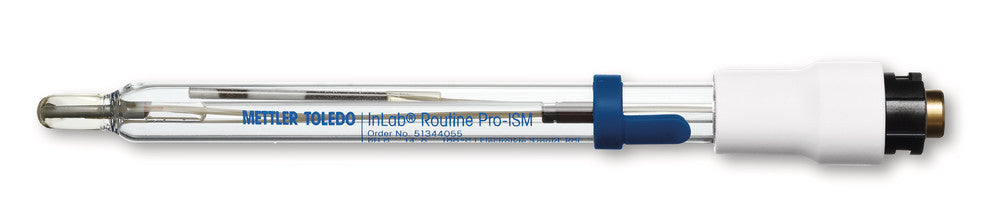

InLab® pH single-rod measuring cell, Routine Pro-ISM®, MultiPin(TM) connector
High-quality pH single-rod measuring cells for temperature-compensated measurements.
Thanks to the Intelligent Sensor Management (ISM®) system, all important data is stored in the sensor and automatically sent to ISM®-compatible measuring devices.
For aqueous solutions in general; quick and extremely resistant to chemicals.Tough HA diaphragm glass, specially designed for use at high pH values, reduces alkali errors to a minimum.With ARGENTHAL™ reference system for a long pH single-rod measuring cell service life: electrolyte with no silver ions, preventing the diaphragm becoming clogged with sulphides.
Delivery without connecting cable, please order separately.
Technical Information
| Type | InLab® Routine Pro-ISM® |
| Parameters | pH temperature |
| pH range | 0 to 14 |
| Operating temperature | 0 to +100 °C |
| Diaphragm | ceramic |
| Reference system | ARGENTHAL™ with Ag+ ion trap |
| Electrolyte | 3 mol/l KCl |
| Maintenance-free | no |
| Storage solution | 3 mol/l KCl |
| Shaft length | 120 mm |
| Ø Shaft | 12 mm |
| Shaft material | glass |
| Temperature sensor | NTC 30 kΩ |
| ISM Technology | yes |
| Connection | MultiPin™ |
