Description

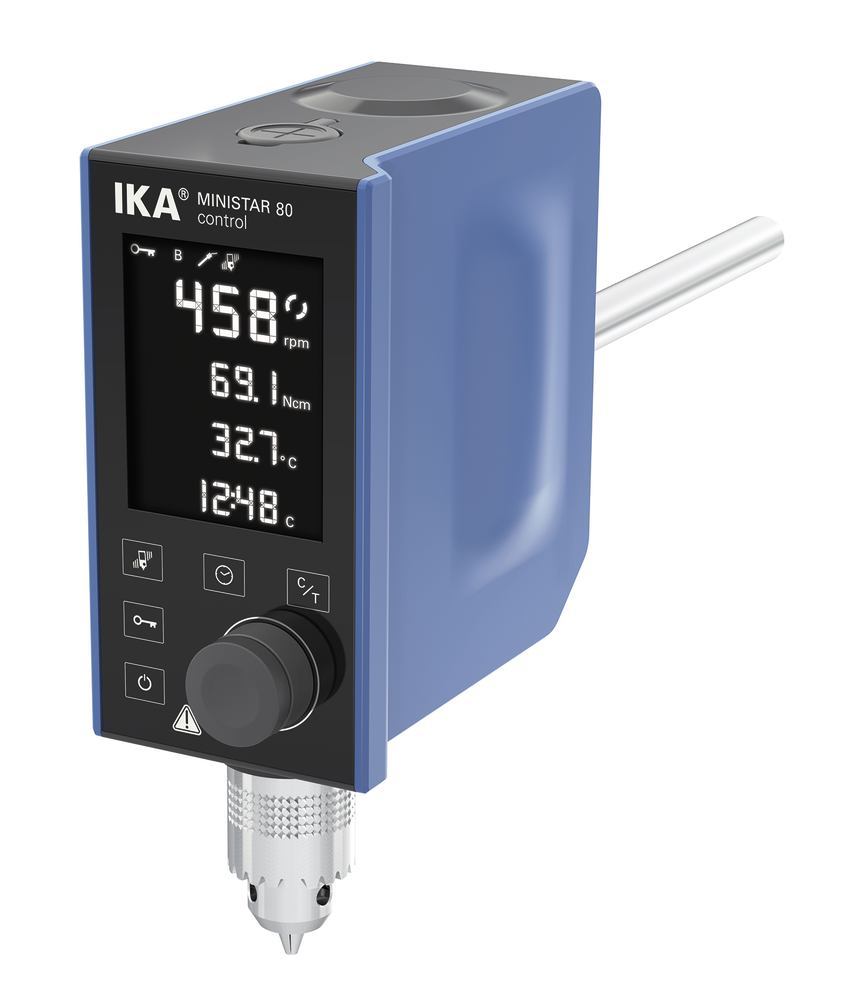

MINISTAR 80 control laboratory stirrers, up to 50 l, 60/46 W, 30-500/min, incl. Pt 1000 H 67.60 temperature measuring sensor and R 300 stirrer shaft protection
For stirring and mixing low to medium viscosity liquids. Compact design with high-end features.
- Vibration detection with automatic stop in the event of stirring tool imbalance
- Torque measurement with indication on the display
- Temperature measurement with indication on the display when the temperature sensor is plugged in (-10 °C to 350 °C, accuracy of ±1.35 °C)
- With timer function up to a max. of 6000 min
- Microprocessor control for constant speed, even with changes in viscosity
- Push-through stirrer shafts
- USB interface and Bluetooth functionality
- Clamping range of chuck 0.5 to 8.2 mm
Delivery incl. Pt 1000 H 67.60 temperature measuring sensor and R 300 stirrer shaft protection. Stirring tool, stand and boss head please order separately - (see stirrer accessories).
Technical Information
| Type | MINISTAR 80 control |
| Max. stirring capacity (H2O) | 50 l |
| Max. viscosity | 60000 mPa·s |
| Max. torque | 80 Ncm |
| Motor power input | 60 W |
| Motor power output | 46 W |
| Speed range | 30 to 500 rpm |
| Speed display | LCD |
| Ø Extension arm | 13 mm |
| Extension arm length | 160 mm |
| W x D x H | 70 x 154 x 193 mm |
| Weight | 1,72 kg |
| Mains connection | 100-240 V, 50/60 Hz |
