Description

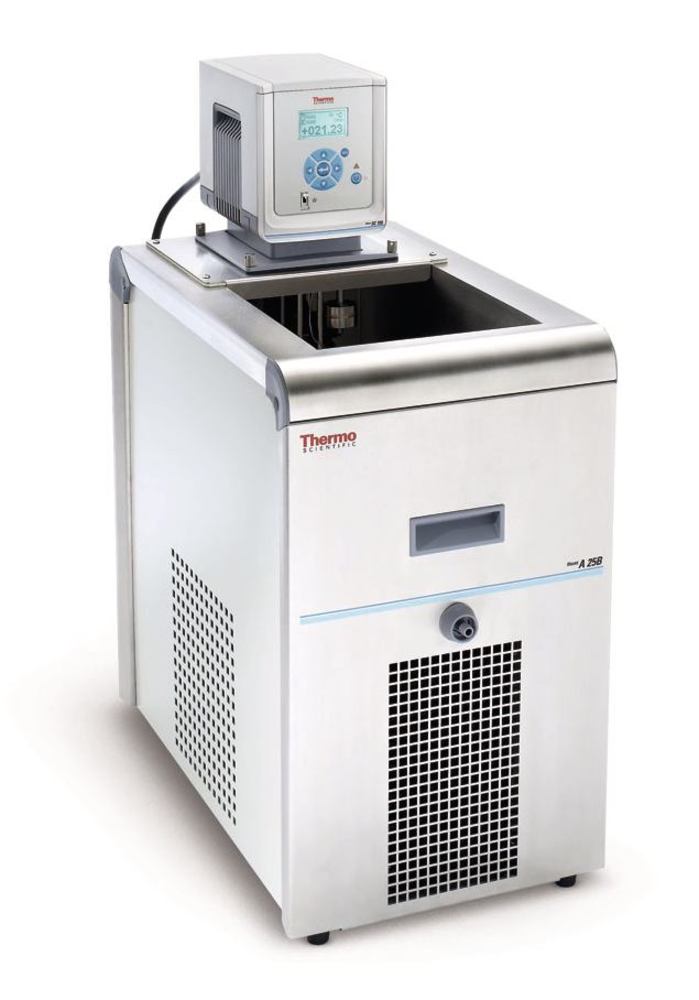

Model SC 150-A25 ref. circ. thermostat, Temp. range -25 - +150°C, bath vol. 12 l, incl. bath cover, circulation set for external circulation
For temperature control in baths or for open and closed external circuits.
- Simultaneous display of target and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Stainless steel bath
- Thermostat heads can be turned to any position in 90° increments on the bath
- Draincock (on the front)
- With integrated handles
- Hose connectors for hoses with 8 and 12 mm inside Ø
- I (NFL) = non-flammable liquidsIII (FL) = flammable liquids
Delivery incl. bath cover and circulation set for circulation.
Technical Information
| Type | SC 150-A25 |
| Operating temperature | -25 to +150 °C |
| Temperature constancy | ±0,02 K |
| Display resolution | 0,1/0,01 °C |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 500 W |
| Max. pump pressure | 300 mbar |
| Max. flow | 17 l/min |
| Bath volume | 12 l |
| Bath opening | 173 x 183 mm |
| Inner depth | 200 mm |
| Outer width | 273 mm |
| Outer depth | 483 mm |
| Outer height | 711 mm |
| Safety class | III (NFL) |
