Description

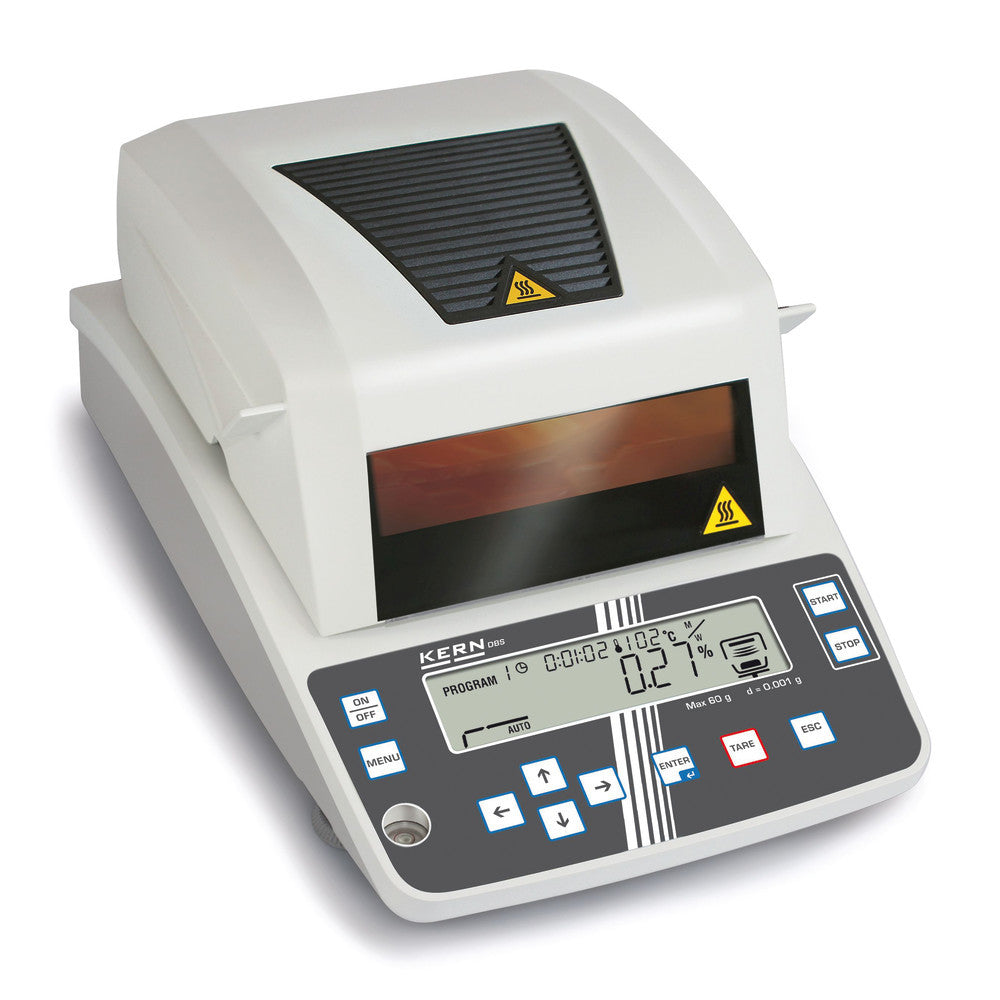

Moisture analyser DBS 60-3, with RS 232 data port
Features:
- Displays: % humidity, % dry matter, ATRO % or weight loss in g
- Heat source: halogen quartz glass heater
- Switch-off criteria:AUTO = drying stops if the set weight loss remains constant for 30 sTIME = drying stops on expiration of the set time
- Drying modes: standard drying, phase drying, gentle drying and quick drying
- Internal memory for automatic execution of 10 drying programs and 100 drying processes carried out
- RS 232 data port
- Sample code for up to 99 samples, 2-digit, freely programmable
- Date and time display
- Sample viewing window
Technical Information
| Type | DBS 60-3 |
| Weighing range | 60 g |
| Readability | 0.01 % / 0.001 g |
| Temperature range | +50 to +200 °C |
| Additional data | can be selected in 1 °C increments |
| Reproducibility | 0,15 % (2 g)0,02 % (10 g) |
| Heating technology | halogen quartz glass heater |
| Time setting from | 1 min |
| Time setting up to | 12 h |
| Weighing pan | Ø 95 mm |
| W x D x H | 202 x 336 x 157 mm |
| Weight | 4,6 kg |
| Mains connection | 220-240 V, 50/60 Hz |
