Description

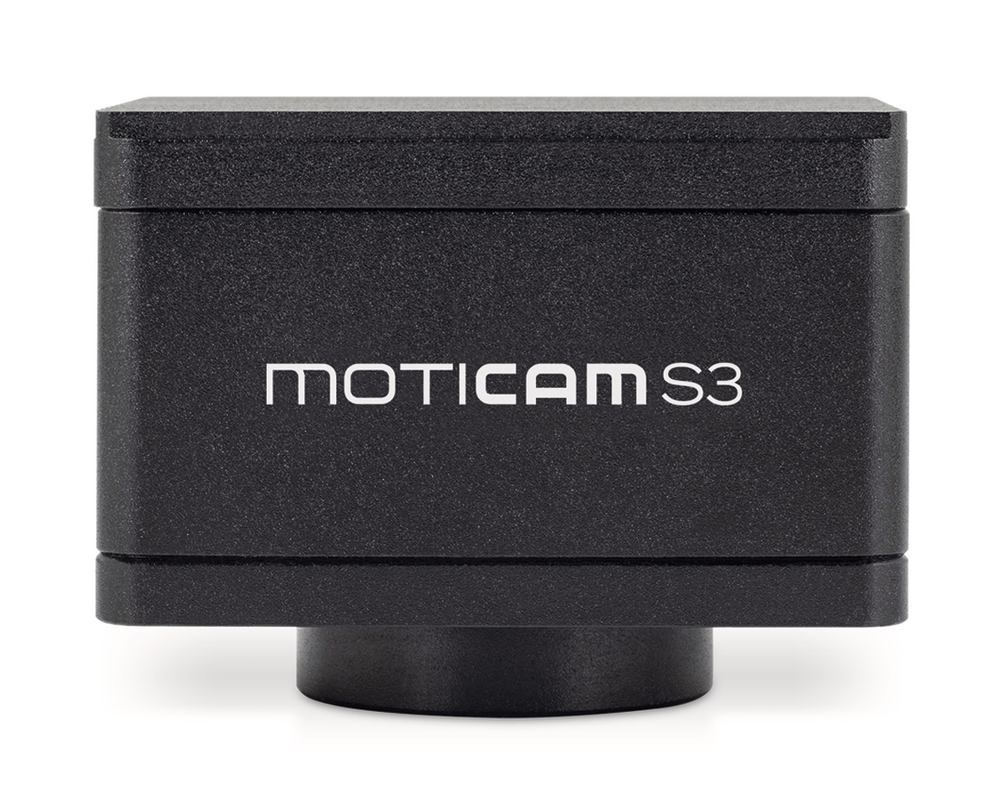

Moticam S3 microscope camera, incl. CS-Ring, USB 3.1 cable,, Motic 4-point calibration, Motic Images Plus 3.0 software
For diverse applications in day-to-day microscopic work in which data processing is carried out directly on the PC.
- Can be mounted via C-mount connection on the third tube of the microscope; the microscope manufacturer provides appropriate C-mount adapters
- New sCMOS technology for high frame rates and optimal image quality; maximum sensitivity for applications with low light output
- Faster data reading for recording rapid phenomena via USB 3.1 gen.1 connection; USB 2.0 compatibility for older computers ensured
- Supported operating systems: Windows XP and later versions, Apple Mac OSX and Linux
- Minimum system requirements: 2 GHz dual-core, 2 GB RAM, min. 512 MB video memory
- Software functions: still image and video, live and still image measurements, image enhancement, white balance, automatic and manual exposure time, individual calibration
Delivery incl. CS ring, USB 3.1 cable, Motic 4-point calibration, Motic Images Plus 3.0 software.
Technical Information
| Type | Moticam S3 |
| Height | 46.5 mm |
| Display | no |
| Sensor type | sCMOS |
| Sensor format | 1/2,8″ |
| Number of pixels | 3 |
| pixel size | 2.5 x 2.5 µm |
| Resolution | 2048 x 1536 pixels (live image display) |
| Images per second | 60 fps @ 2048 x 1536 60 fps @ 1920 x 1080 |
| Application | Bright-field, dark-field, polarisation |
| Connection | C-Mount |
| Port | USB 3.1 |
| W x D x H | 52 x 59 x 46.5 mm |
| Power supply | via USB connection |
