Description

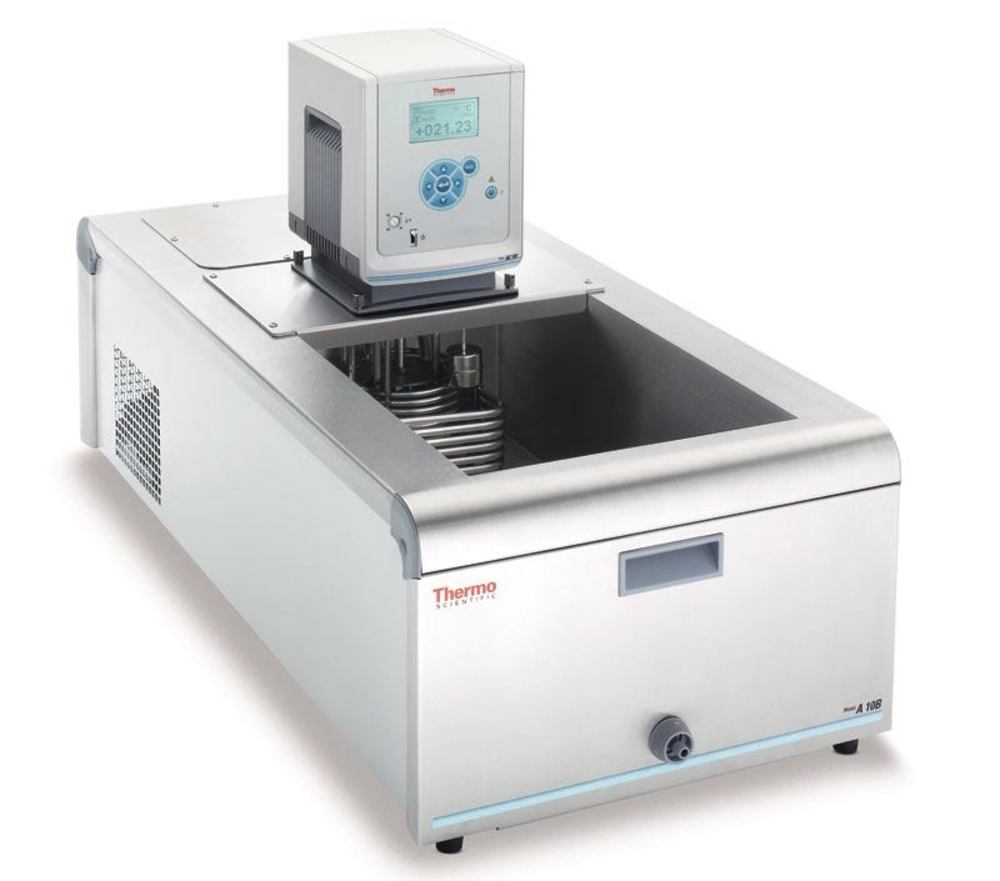

Refrigerating circulating AC 150-A10B, -10 - +100 °C, vol. 18 - 30 l, 2000 W, incl. circulating set, drain cock
For temperature control in bath or for open and closed external circuits.
- Simultaneous display of set and actual temperature
- Display resolution 0.1 or 0.01 °C can be selected
- Stainless steel bath
- Thermostat heads can be turned invariably in 90° steps on the bath
- Drain cock (on the front)
- With integrated handles
- Connectors for tubes with 8 and 12 mm inner-Ø
- III (FL) = flammable liquids
Delivery incl. circulation set for external circulation. Not including bath cover. If required, please order separately.
Technical Information
| Type | AC 150-A10B |
| Operating temperature | -10 to +100 °C |
| Temperature constancy | ±0,01 K |
| Display resolution | 0,1/0,01 °C |
| Heating output | 2000 W |
| Cooling capacity | 20 °C: 250 W |
| Max. pump pressure | 475 mbar |
| Max. flow | 20 l/min |
| Max. pump suction | 330 mbar |
| Bath volume | 18-30 l |
| Bath opening | 295 x 375 mm |
| Inner depth | 200 mm |
| Outer width | 429 mm |
| Outer depth | 913 mm |
| Outer height | 509 mm |
| Safety class | III (FL) |
