Description

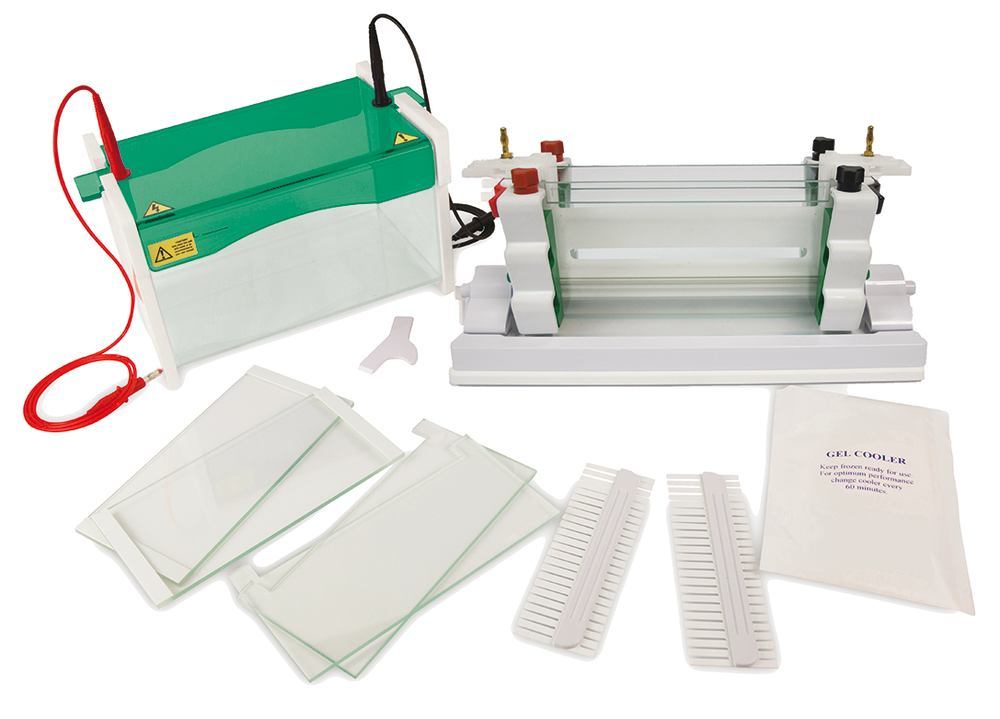

ROTIPHORESE® Unit PROclamp MINI Wide, Complete set, glass plates 20 x 10 cm, incl. buffer tank, lid, 2 cables (4mm plugs), running module, 2 glass plates with bonded spacers (1 mm thick), 2 notched glass plates, 1 dummy plate, 2 combs (1 mm thick, 24 wells), cooling pack, casting module.
Material: PMMA (Acrylic glass).
The PROclamp Line - vertical Double Electrophoresis Units with Clamping SystemThe fast-clamping technique allows rapid and easy-to-handle insertion of glass plates and ready-made gels.
General features:
- For running of up to 4 gels in parallel
- Extensive range of accessories incl. glass plates with fixed spacers and suitable blotting modules available
- Colour coded spacers and combs in up to 5 thicknesses available - 0,5 up to 2 mm
- Compatible with multi-channel pipettors (combs are marked *)
- Effective buffer cooling independent of running water or chillers
- Modular system: Tanks are compatible with different electrophoresis modules, keeping costs and space to a minimum.
Tight and leak-proof insertion of glass plates in seconds - by modern fast-clamping techniques (MINI: clamps, MAXI: waves).
Electrophoresis Unit ROTIPHORESE® PROclamp MINI Wide
- Electrophoresis chamber with accessories - ready for use
- For vertical electrophoresis of wide mini gels (20 × 10 cm)
- Innovative new wave-screw-clamp technology
- Up to 48 samples per gel (capacity equivalent to 2 mini gels)
- Effective buffer cooling independent of running water or chillers
Delivery incl. 1 vertical electrophoresis unit consisting of buffer tank, safety lid and 2 cables (4 mm plugs), 1 running module, 1 gel cooling pack, accessories. Additionally included: 2 standard glass plates with fixed spacers (thickness 1 mm), 2 notched glass plates, 1 dummy plate (for run of one gel only), 2 combs (thickness 1 mm, 24 wells), 4 yellow wave-clamps for electrophoresis of 3 or 4 gels (substitute green clamps), 1 gel casting module.For the run of 3 or 4 gels, please additionally order PROclamp MINI Wide notched glass plates with fixed spacers (e. g. thickness 1 mm, Art. No. 1427.1) and suitable combs (e. g. Art. No. 5957.1).
Technical Information
| Type | PROclamp MINI Wide |
| L x W, glass plate | 10 x 20 cm |
| Max. number of samples | 192 |
| Buffer volume | 250 / 600 ml |
| L x W x H, device | 16 x 26 x 16 cm |
| Suitable for | Polyacrylamide gels |
