Description

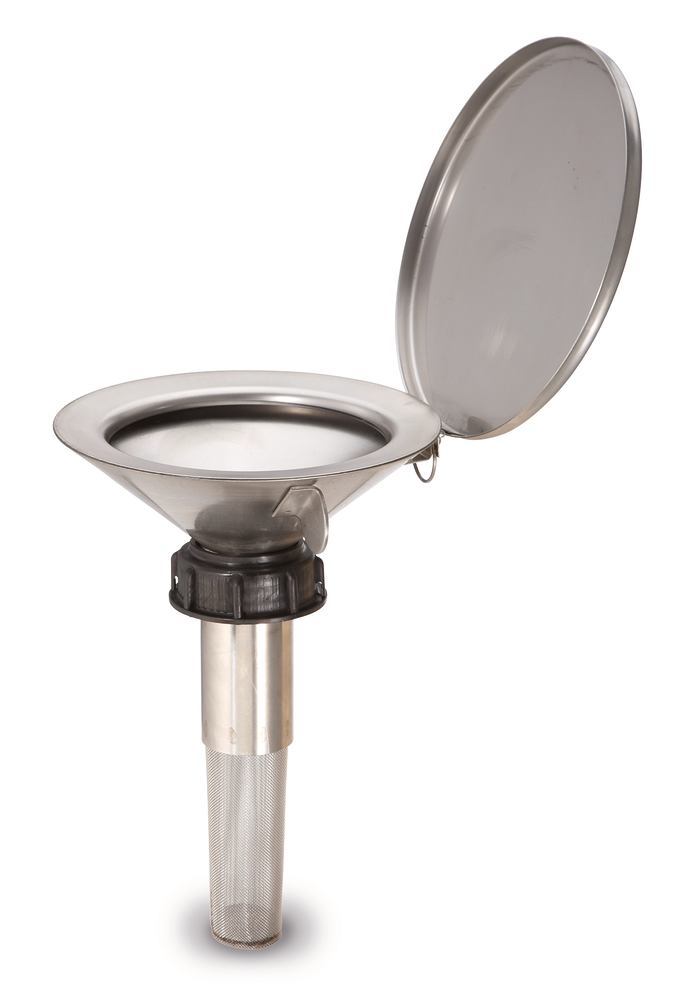

Safety funnel made of stainless steel, Slimline, DIN51 thread, with lid, , Overfill protection and flame arrester
Material: stainless steel, unpolished. Seal made of Alveocel (polyolefin foam).
Can be screwed onto plastic canisters. With lid, overfill protection, flame arrester and earth connection.
- The flame arrester, which reaches far into the container (approx. 150 mm long), prevents the ingress of sparks and can be unscrewed for cleaning or replacement
- For conductive containers, earthing is realised by the thread (direct contact); an additional earth connection is provided for other containers
- The flap lid reduces the emission of volatile, harmful vapours and needs to be closed manually
Height above thread: 70 mm.
Delivery without sieve insert, please order separately.
Technical Information
| Thread | DIN 51 |
| Ø outer upper | 190 mm |
