Description

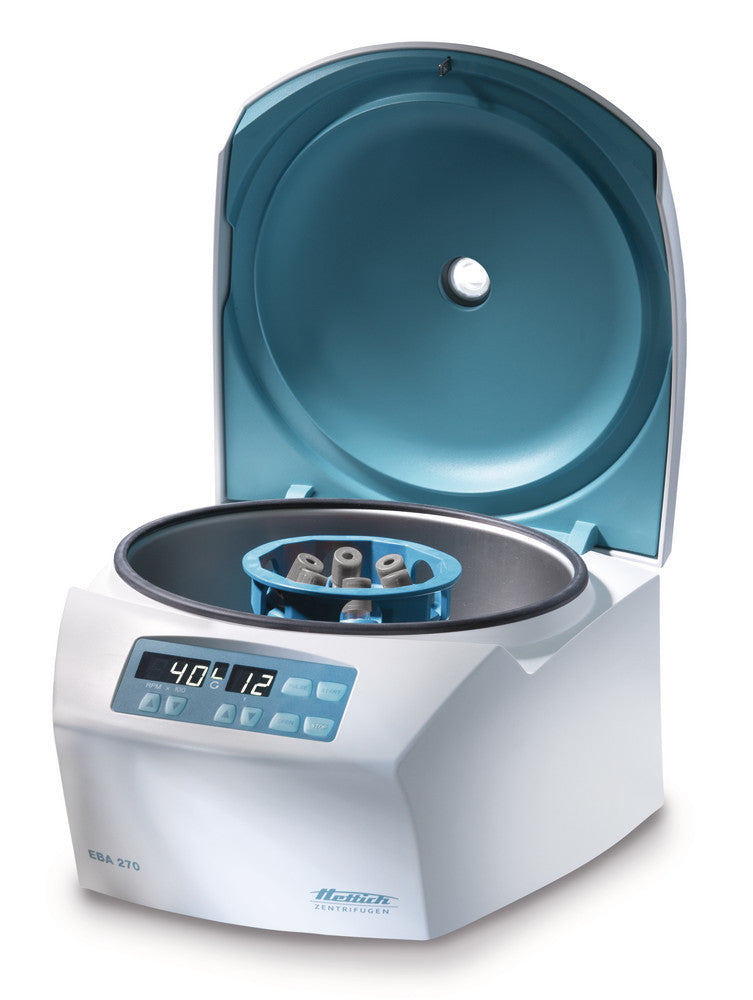

Small centrifuge EBA 270, speed 500 to 4000 rpm, incl. 6-slot oscillating rotor (90 °), complete with 6 sleeves 6 x 15 ml
With 6-slot oscillating rotor for centrifuging blood sample vessels, urine test tubes and standard centrifuge tubes.
- Variable speed and cycle time
- Display of parameters during centrifugation
- "Open lid" key for one-touch opening
- Safety: lid lock, emergency lid lock release, imbalance switch-off and metal lid
- Stainless steel centrifuging chamber
For use of the following types of vessel:
- 15 ml standard test tubes (Ø 17 x L 100 mm)
- 5/6 ml standard test tubes (Ø 12 x L 75/82 mm)
- 2.6-2.9 blood sample vessels (Ø 13 x L 65 mm), 2.7-3 m (Ø 11 x L 66 mm)
- 4-5.5 ml blood sample vessels (Ø 15 x L 75 mm), 4.5-5 ml (Ø 11 x L 92 mm), 4.9 ml (Ø 13 x L 90 mm), 7.5-8.5 ml (Ø 15 x L 92 mm), 9-10 ml (Ø 16 x L 92 mm), 10 ml (Ø 15 x L 102 mm)
- Urine test tubes 1.6-5 ml (Ø 13 x L 75 mm), 4.5-7 ml (Ø 13 x L 100 mm), 4-7 ml (Ø 16 x L 75 mm), 8.5-10 ml (Ø 16 x L 100 mm)
In vitro diagnostic medical device class A
Delivery incl. 6-fold oscillating rotor (90°), 6 sleeves with hole Ø 17.5 x L 80 mm and 6 sleeves with hole Ø 17.5 x L 55 mm.
Technical Information
| Type | EBA 270 |
| Maximum speed | 4000 rpm |
| Additional data | Speed can be adjusted in increments of 100 rpm |
| Maximum RCF | 2254 x g |
| Minimum speed | 500 rpm |
| Timer function | 1-99 min / continuous operation / short cycle (pulse key) |
| W x D x H | 326 x 389 x 239 mm |
| Weight | 13 kg |
| Mains connection | 208-240 V, 50/60 Hz |
