Description

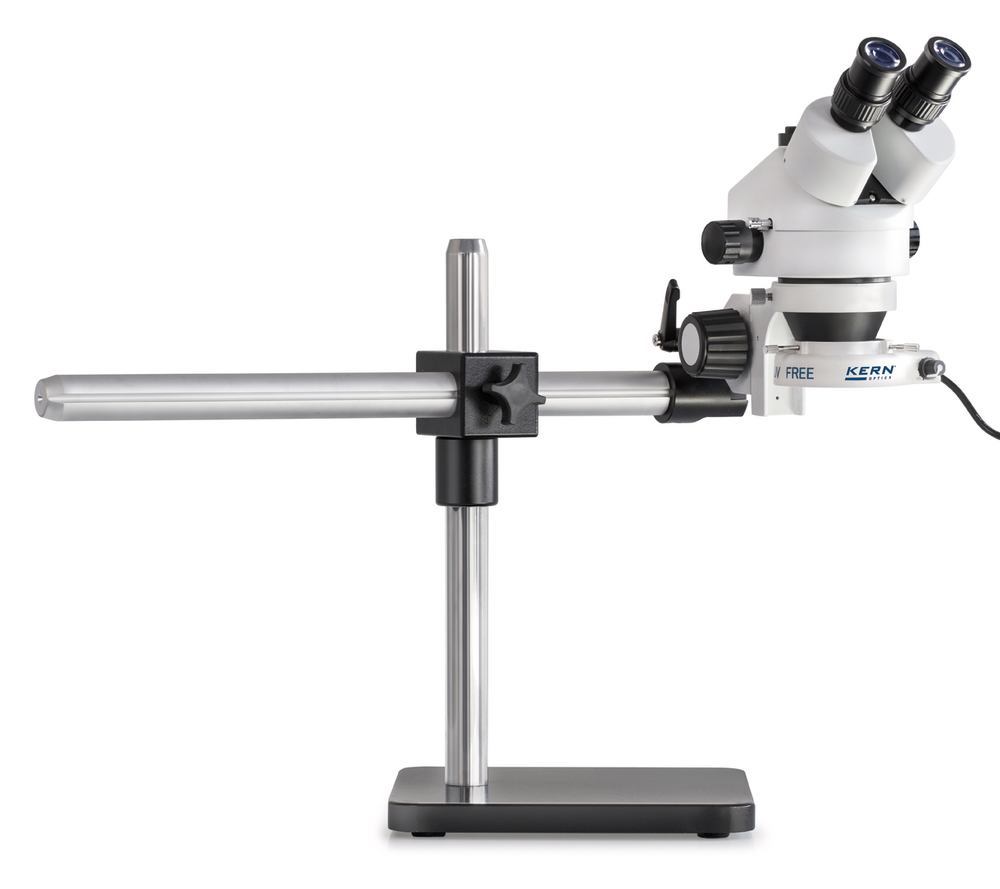

Stereo zoom microscope OZL 961, Binocular, Incl. eyecups and dust cover
Ideal for training organisations, workshops and installation and repair workplaces, e.g. in the electronics industry.
- High level of flexibility thanks to universal telescopic arm stand. Particularly suited to large samples and free-hand working under the microscope.
- With extra-wide field eyepieces for greater vision angle, thereby ideal for people who wear glasses.
- Continuously variable magnification via zoom lens
- Ideal illumination of the sample via dimmable LED ring light (4.5 W, incident light)
Optional accessories (please order separately):
- Widefield eyepieces and ancillary lenses for modulating the total magnification
Delivery incl. eyecups and dust cover.
Technical Information
| Type | OZL 961 |
| Tube | binocular |
| Total magnification | 7x to 45x – can be expanded up to 180x as an option |
| Magnification type | zoom |
| Ocular magnification | super wide angle (HWF) 10x |
| Lens magnification | 0.7-4.5x |
| Field of view | 20 mm |
| Dioptre compensation | ±5 dpt at both ocular tubes |
| Angular observation | 45 ° |
| Head | can be rotated 360° |
| Distance between eyepieces | 55-75 mm |
| Working distance | 105 mm |
| Light source | LED |
| Type of lighting | incident light |
| Image focusing | coarse focus |
| Power supply | mains-powered |
| Mains connection | 100-240 V, 50/60 Hz |
