Description

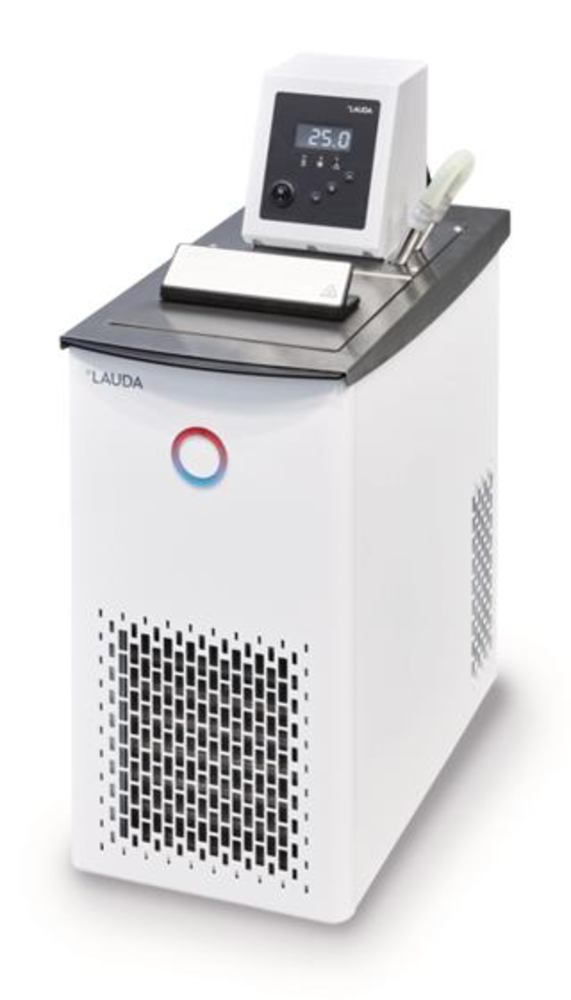

Table refrigerat. thermostat Alpha RA 8, -25 to +100°C, bath vol. 5 - 7.5 l, incl. lid for bath and circulating pump kit
For controlling temperature of external, closed electric loads. Simultaneous internal temperature control possible.
- 3-key operation
- LCD display, display resolution 0.1 °C
- Actual or set value
- With timer function (max. runtime 99 h, 59 min)
- Control lamp for heating, cooling and breakdown.
- Front panel can be removed to clean the condenser
- With drain outlet on the back to empty tempering liquid
- Bath tubs made of stainless steel
- Hose connectors for hoses with 13 mm inside Ø
- I (NFL) = non-flammable liquids
Delivery incl. bath cover and pump circulation set.
Technical Information
| Type | Alpha RA 8 |
| Operating temperature | -25 to +100 °C |
| Temperature constancy | ±0,05 K |
| Display resolution | 0,1 °C |
| Heating output | 1500 W |
| Cooling capacity | 20 °C: 225 W |
| Max. pump pressure | 200 mbar |
| Max. flow | 15 l/min |
| Bath volume | 5-7,5 l |
| Bath opening | 165 x 177 mm |
| Inner depth | 160 mm |
| Safety class | I (NFL) |
