Description

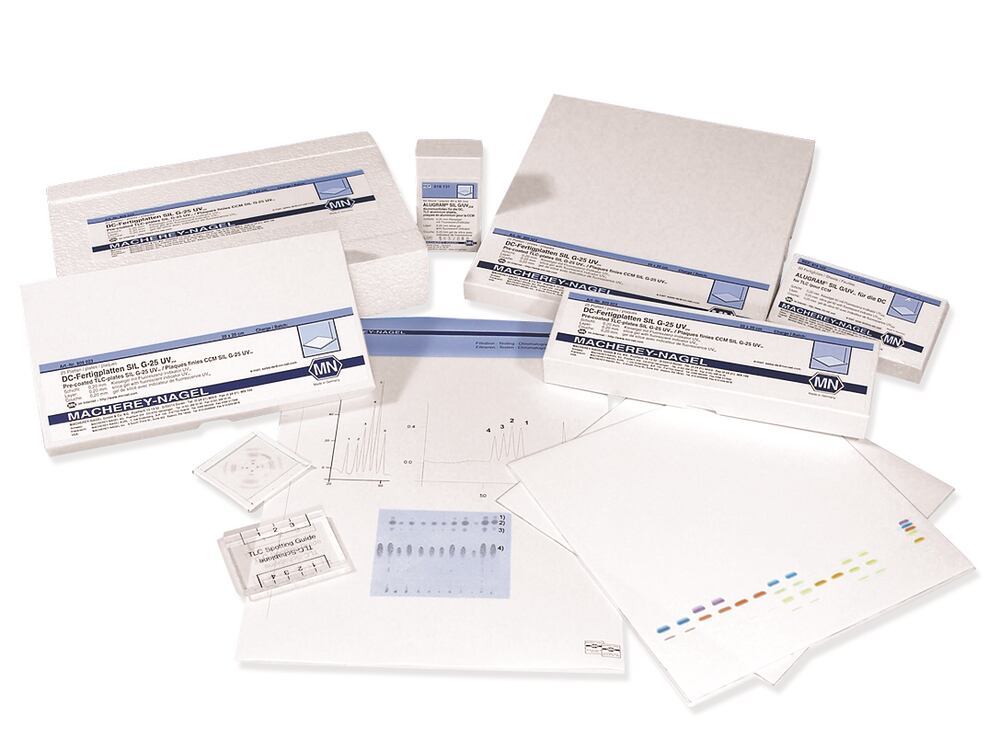

TLC-r.-to-u. foil POLYGRAM® SIL G/UV254, 4x8cm, polyest. foil, 0.2mm, fluor.-ind.
Material: polyester with silica gel 60, with fluorescence indicator.
- Specific surface: approx. 500 m2/g
- Medium pore width: 60 Å
- Specific pore volume: 0,75 ml/g
- Particle size: 5-17 µm
Further attractive products to complete your chromatography laboratory can be found on our Chromatographypage!
Technical Information
| Plate format | 4 x 8 cm |
| Layer thickness | 0.2 mm |
| Packaging | |
| Material | polyester |
| Modification | Unmodified silica gel (SiOH) |
| Fluorescent indicator | yes |
| Separation principle | Normal phase (NP) |
| Phase | SIL G |
| Particle size | 5-17 µm |
| Particle type | Fully porous particles (FPP) |
| Specific surface according to BET | 500 m²/g |
| Pore size | 60 Å |
| Pore volume | 0.75 ml/g |
| pH stability | 2,0-8,0 |
| Temperature stability | <185 °C |
| Recommended application(s) | Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Standard TLC applications, Steroids, Sweeteners, Vitamins |
| Application Database (Macherey-Nagel) | TLC |
