Description
Large single zone split tube furnace
Wire heating elements in high quality vacuum formed insulation
1200°C max. temperature
1200 mm heated length
1900 mm tube length for use in air
1900 mm tube length for use with modified atmosphere
200 mm max. outer work tube diameter
530x1615x670 mm (HxWxD) outer dimensions furnace
Digital PID controller (see details in separate position)
220x1255x480 mm (HxWxD) outer dimensions control module
11.4 kW max power rating
Type N thermocouple
192 kg weight

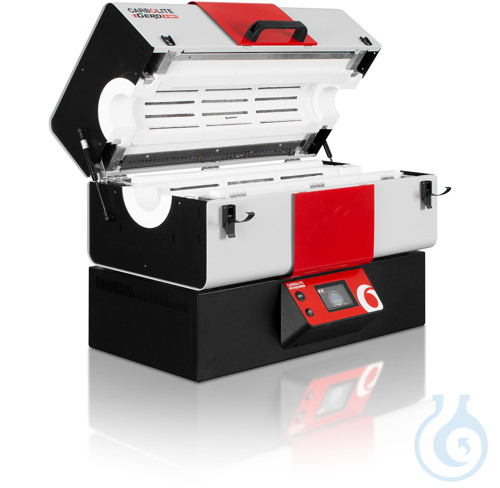

The picture shows a product from the same range. Size and features may differ from this.
The furnace body is supplied separated from the control box, for horizontal use mounted on the bench.
There are 2 m long interconnecting cables between the furnace and control box which can be easily unplugged at the back of the control box.
Digital programmer EPC3016P1 with 24 programmable segments (e.g. 12 ramps and 12 dwell times)
- Electronic reference junction
- Thermocouple pressure relief device
- Electronic limitation of the adjustability
- Digital temperature adjusting
- Digital display of the actual value
- Max. 2 relay operated options (e.g. solenoid valves, if fitted optionally)
- Ethernet port at the back of the control box
To run the furnace, please order one of the following packages
- Air package Quartz 190x200x1900mm
- Inert gas package Quarz 190x200x1900mm
- Vacuum package (on request)
Optional
Upgrade CC-T1 from EPC3016P1 (00053272)
Digital over-temperature protection (00053325)
