Description

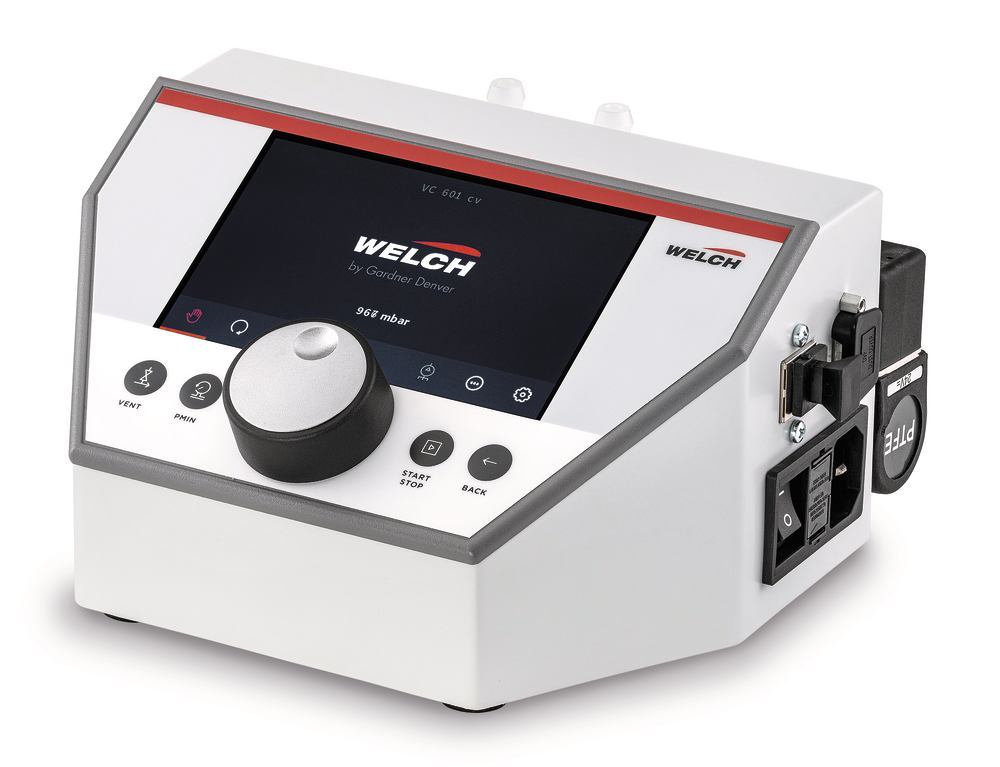

Vacuum controllers, VCpro 601
Two-point controller for regulating a rough vacuum, for universal use. Robust vacuum sensor, chemically resistant and very precisely adjustable to ±1 mbar.
- With large, multilingual colour display and light/dark screen mode for optimum visibility
- Measured values can be presented digitally as a curve progression or in an analogue manner as individual values
- Integrated solvents library with stored distillation-specific parameters or freely adjustable boiling points; storage of individual pressure histories for innovative processes possible
- With communication port for remote control/monitoring, for downloading logged process data and for software updates
- Various safety levels can be accessed for self-defined user approvals
- Selectable pressure unit (mbar/Torr/psi)
- Integrated ventilation valve for inert gas/room air and solenoid control valve for vacuum
- Connection for cooling water valve available
Delivery incl. VCpro 601 vacuum controller with vacuum valve, venting valve and holder for stand removal.
Technical Information
| Type | VCpro 601 |
| Measuring range | 1100-1 mbar |
| Resolution | 1 mbar |
| Measuring principle | capacitive absolute pressure transducer, regardless of the gas type |
| Accuracy | sensor: 0.3% full scale control: 1 mbar |
| Connection | for hose inner Ø 8 mm |
| Venting valve connection | for hose inner Ø 4 mm |
| Ambient temperature | +15 - +30 °C |
| L x W x H | 195 x 178 x 105 mm |
| Weight | 1500 g |
| Mains connection | 115-240 V, 50/60 Hz |
