Description
Vacuum Ovens
Achieve maximum temperatures of 220°C (428°F) with Thermo Scientific™ Vacuum Ovens, while benefiting from two control configurations and display options. These ovens feature independent vacuum and purge needle valves. Radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications. Features :
Small 3606 Models
Top-mounted independent evacuation and venting vacuum fittings
Medium and large 3608 and 3618 Models
Front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on the front of the unit
Achieve maximum temperatures of 220°C (428°F) with Thermo Scientific™ Vacuum Ovens, while benefiting from two control configurations and display options. These ovens feature independent vacuum and purge needle valves. Radiant warm-wall heating system optimizes uniformity and conserves chamber space for drying, curing, vacuum embedding and plating applications. Features :
- 3 convenient chamber sizes: 12.5L (0.44 cu.ft.), 19.8L (0.7 cu.ft.), 65.1L (2.3 cu.ft.)
- Temperature Range: Ambient +10° to 220°C
- Hydraulic thermostat temperature control with dial thermometer (5°C increments); medium and large units available with LED display (1°C increments)
- Polycarbonate safety shield protects door glass
- Silicone door gasket and positive latch door maintain seal at all vacuum levels – use of vacuum grease is recommended
- Vacuum and air lines are corrosion-resistant stainless-steel tubing for optimum chamber cleanliness and long-term performance
- Two removable stacking aluminum shelves
- Powder-coated heavy-gauge steel exterior for durability
- Radiant warm-wall heating system helps optimize uniformity and conserve chamber space; 3 in.(7.6cm) glass wool insulation prevents heat loss
Small 3606 Models
Top-mounted independent evacuation and venting vacuum fittings
Medium and large 3608 and 3618 Models
Front-mounted three-way valve for evacuation, venting and purging of inert gases (e.g. Nitrogen or Argon) with vacuum fittings on the front of the unit
- Capacity: 0.7 cu.ft., 19.8L
- Amperage: 2.5A

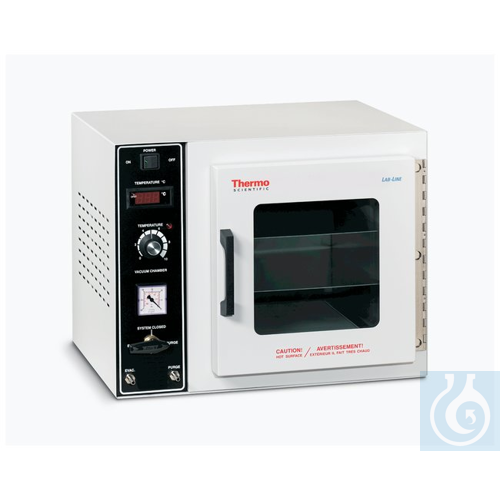

- Description: 19.8L (0.7 cu. ft.); 240V; 600w; 2.5A; LED display
- Cabinet Material: Powder-coated heavy-gauge steel
- Capacity (Metric): 19.8L
- Capacity (English): 0.7 cu.ft.
- Chamber Material: Stainless steel
- Depth (English) Interior: 12 in.
- Depth (Metric) Interior: 30cm
- Display: LED with 1°C increments
- Dimensions (D x W x H) Interior: 12 x 10 x 10 in. (30 x 25 x 25cm)
- Dimensions (L x W x H) Exterior: 16 x 19.8 x 16.25 in. (40 x 50 x 41cm)
- Height (English) Exterior: 16.25 in.
- Height (English) Interior: 10 in.
- Height (Metric) Exterior: 41cm
- Hertz: 50/60Hz
- Height (Metric) Interior: 25cm
- Length (English) Exterior: 16 in.
- Length (Metric) Exterior: 40cm
- Shelves: 2, Aluminum
- Shipping Weight (English): 130 lb.
- Shipping Weight (Metric): 59kg
- Temperature Range (Metric): Ambient +10° to 220°C
- Temperature Resolution: ±1.0°C
- Temperature Uniformity: ±6.0°C at 100°C 25 ft.Hg
- Type: OTP
- Vacuum Range: 0 to 30 in.Hg
- Voltage: 240V
- Width (English) Exterior: 19.8 in.
- Wattage: 600w
- Width (Metric) Exterior: 50cm
- Width (English) Interior: 10 in.
- Width (Metric) Interior: 25cm
- Electrical Requirements: 240V 50/60Hz
