Description

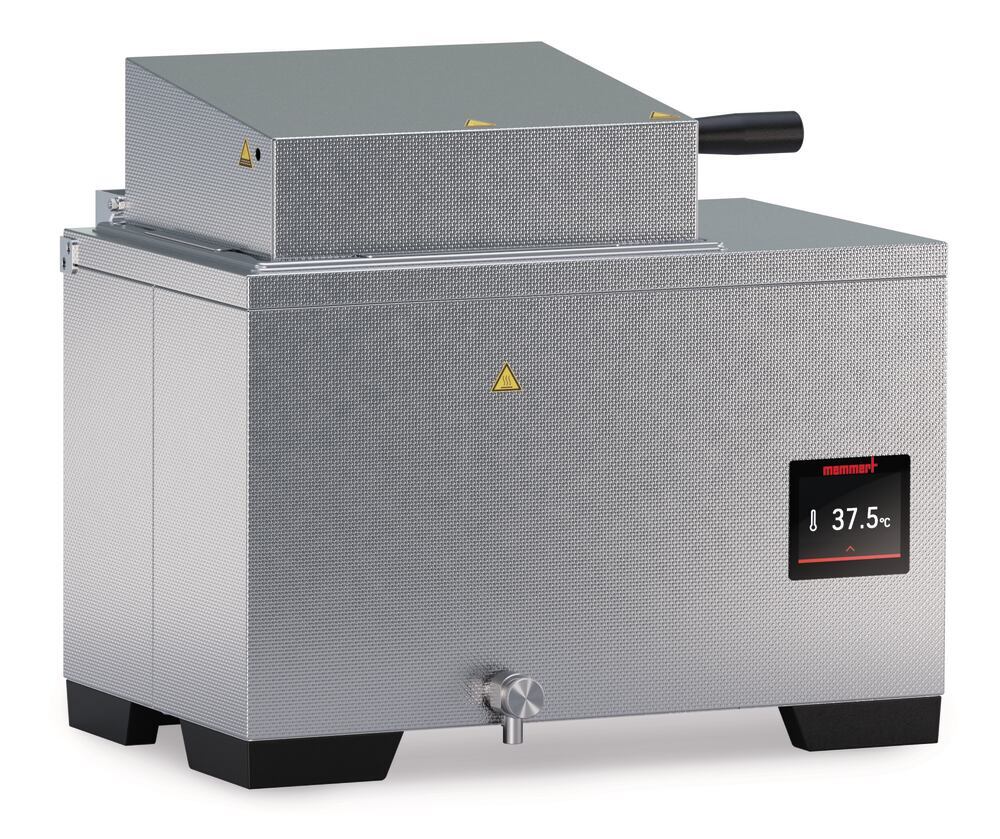

WTB 11 water bath incl. flat cover with, Rings and slanting cover, draincock,, volume 10 l, 5 °C above ambient temperature up to +100 °C
For temperature control of ointments, emulsions, samples, plates and nutrient solutions in the laboratory, as well as warm storage and calibration in industrial applications.
- For an operating temperature range from 5 °C above ambient temperature to +100 °C
- Intuitive 3.5″ colour graphic display with touchscreen
- Integrated digital clock from 1 min to 99.59 h
- Independent temperature limiter for heater switch-off in the event of a fault
- Corrosion-protected heating outside of the working area
- Stainless steel tray with no corners or edges for ease of cleaning, incl. central drain (no obstructing fittings)
- Bath drainage by drain valve
Delivery incl. inclined and flat cover with sets of rings and drain valve.
Technical Information
| Type | WTB 11 |
| Bath volume | 10 l |
| Inner length | 267 mm |
| Inner width | 207 mm |
| Inner height | 200 mm |
| Outer length | 479 mm |
| Outer width | 289 mm |
| Outer height | 295 mm |
| Height with flat cover | 322 mm |
| Ring set openings | 3 |
| Ø Flat cover opening | 87 mm |
| Operating temperature | from 5 °C above room temperature to 100 °C |
| Set temperature range | +10 to +100 °C |
| Setting accuracy | 0,1 °C |
| Temporal temp. variance | ±0,1 K |
| Spatial temp. deviation | ±0,3 K |
| Heating output | 1000 W |
| Weight | 14 kg |
| Mains connection | 230 V, 50/60 Hz |
