Description

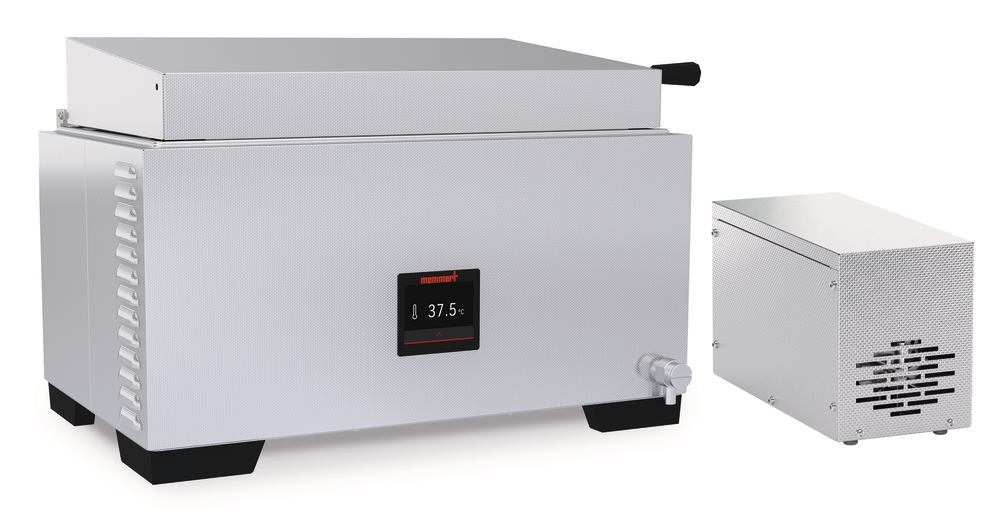

WTB 24 water bath with circulation pump, incl. stainless steel slanting cover
With pump device for continuous circulation of the temperature control medium.
- For an operating temperature range from 5 °C above ambient temperature to +100 °C
- Pump can be switched on and off
- Intuitive 3.5″ colour graphic display with touchscreen
- Integrated digital clock from 1 min to 99.59 h
- Independent temperature limiter for heater switch-off in the event of a fault
- Corrosion-protected heating outside of the working area
- Stainless steel tray with no corners or edges for ease of cleaning, incl. central drain (no obstructing fittings)
- Bath drainage by drain valve
Delivery incl. stainless steel slanting cover and pump device.
Technical Information
| Type | WTB 24 |
| Bath volume | 23,1 l |
| Inner length | 472 mm |
| Inner width | 267 mm |
| Inner height | 200 mm |
| Outer length | 749 mm |
| Outer width | 349 mm |
| Outer height | 295 mm |
| Height with slanting cover | 425 mm |
| Operating temperature | from 5 °C above room temperature to 100 °C |
| Set temperature range | +10 to +100 °C |
| Setting accuracy | 0,1 °C |
| Temporal temp. variance | ±0,1 K |
| Spatial temp. deviation | ±0,3 K |
| Heating output | 1420 W |
| Weight | 23 kg |
| Mains connection | 230 V, 50/60 Hz |
