Description

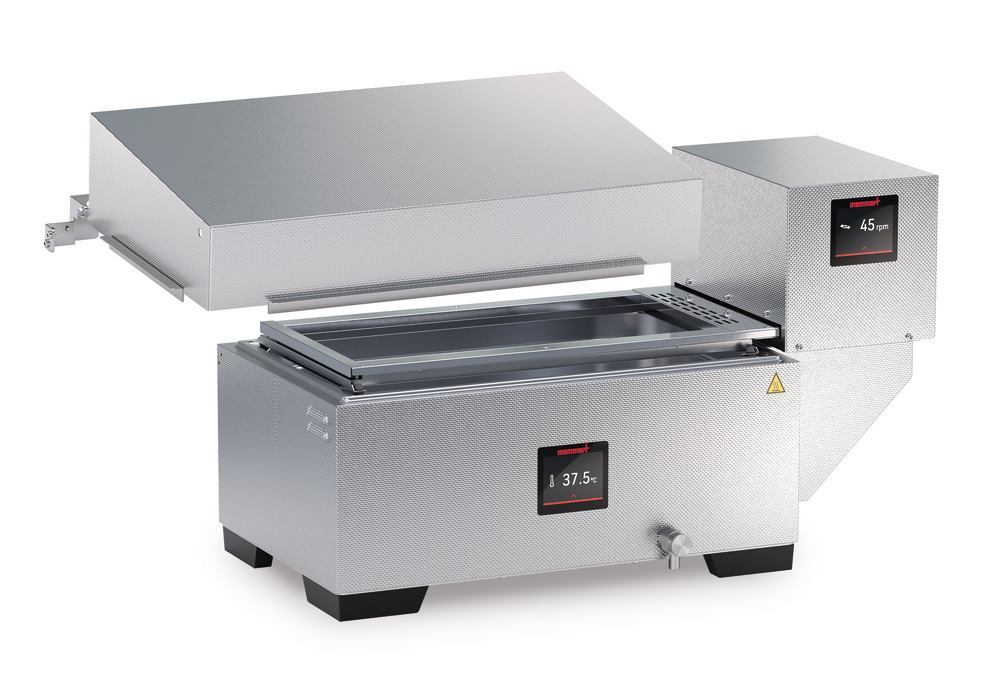

WTB 35 water bath with shaker, 37 l, 35 to 160 strokes per min.),, Delivery incl. stainless steel slanting cover for diverting condensation, shaker with mounting frame and collection tray with perforated mounting plate (stainless steel) with hole pattern for mounting fixing clips for Erlenmeyer flasks (fixing clips for flasks can be ordered separately if required).
With horizontal back and forward shaking strokes. Continuously variable frequency adjustment (35 to 160 strokes per min).
- For an operating temperature range from 5 °C above ambient temperature to +100 °C
- Intuitive 3.5″ colour graphic display with touchscreen
- Integrated digital clock from 1 min to 99.59 h
- Independent temperature limiter for heater switch-off in the event of a fault
- Corrosion-protected heating outside of the working area
- Stainless steel tray with no corners or edges for ease of cleaning, incl. central drain (no obstructing fittings)
- Bath drainage by draincock
- The collection tray supplied is sufficient for general operation. If desired, fixing clips for flasks can be ordered as an option and attached to the perforated mounting plate.
Delivery incl. stainless steel slanting cover for diverting condensation, shaker with mounting frame and collection tray with perforated mounting plate (stainless steel) for mounting fixing clips for Erlenmeyer flasks (fixing clips for flasks can be ordered separately if required).
Technical Information
| Type | WTB 35 |
| Bath volume | 37,5 l |
| Movement type | Back and forward |
| Inner length | 602 mm |
| Inner width | 482 mm |
| Inner height | 150 mm |
| Outer length | 868 mm |
| Outer width | 554 mm |
| Outer height | 245 mm |
| Height with slanting cover | 375 mm |
| Operating temperature | from 5 °C above room temperature to 100 °C |
| Set temperature range | +10 to +100 °C |
| Setting accuracy | 0,1 °C |
| Temporal temp. variance | ±0,1 K |
| Spatial temp. deviation | ±0,3 K |
| Shaking frequency | 35-160 rpm |
| Heating output | 2800 W |
| Max. loading of | Fixing clips33 x 100 ml flasks24 x 200 ml flasks24 x 300 ml flasks16 x 500 ml flasks |
| Weight | 34 kg |
| Mains connection | 230 V, 50/60 Hz |
