Description

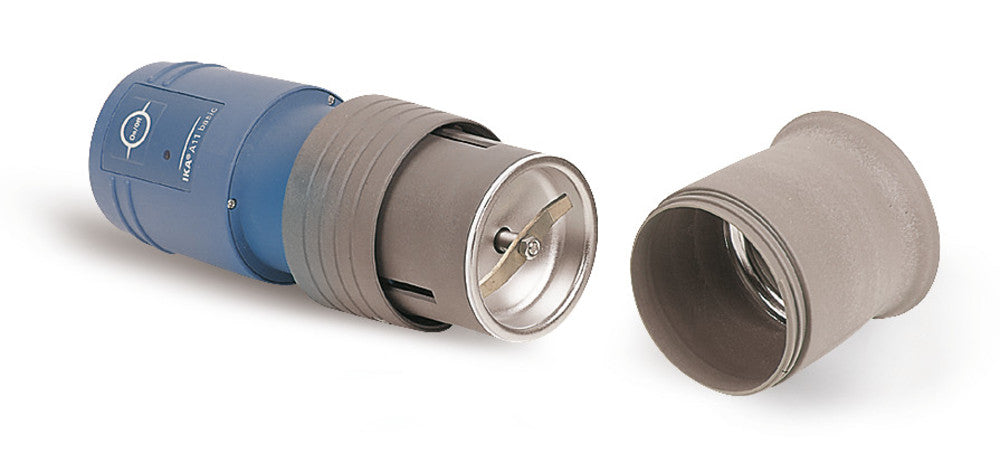

A11 basic analysis mill, 80 ml volume, 19500-28000/min, W 85xD 85xH 240 mm
Batch mill with two grinding processes:
- Impact milling of hard, brittle grinding material with a stainless steel beater up to max. Mohs’ hardness scale 6 (beater is included in delivery)
- Blade milling of soft, fibrous grinding material with a cutting knife (not included in delivery)
Moist and sticky process materials can be ground by adding water. The standard grinding beaker (Art. No. T537.1) is suitable for embrittling grinding material with liquid nitrogen directly in the grinding chamber.
| Type | A11 basic |
| Usable volume | 80 ml |
| Motor power input | 300 W |
| Motor power output | 160 W |
| On-load speed | 19500 rpm |
| Max. duty time | Short time operation (KB 1/10): 1 min ON/10 min OFF |
| Idle speed | 28000 rpm |
| Max. circumferential speed | 53 m/s |
| W x D x H, total | 85 x 85 x 240 mm |
| IP rating | 43 |
| Weight | 1.5 kg |
| Mains connection | 230 V, 50/60 Hz |
