Description

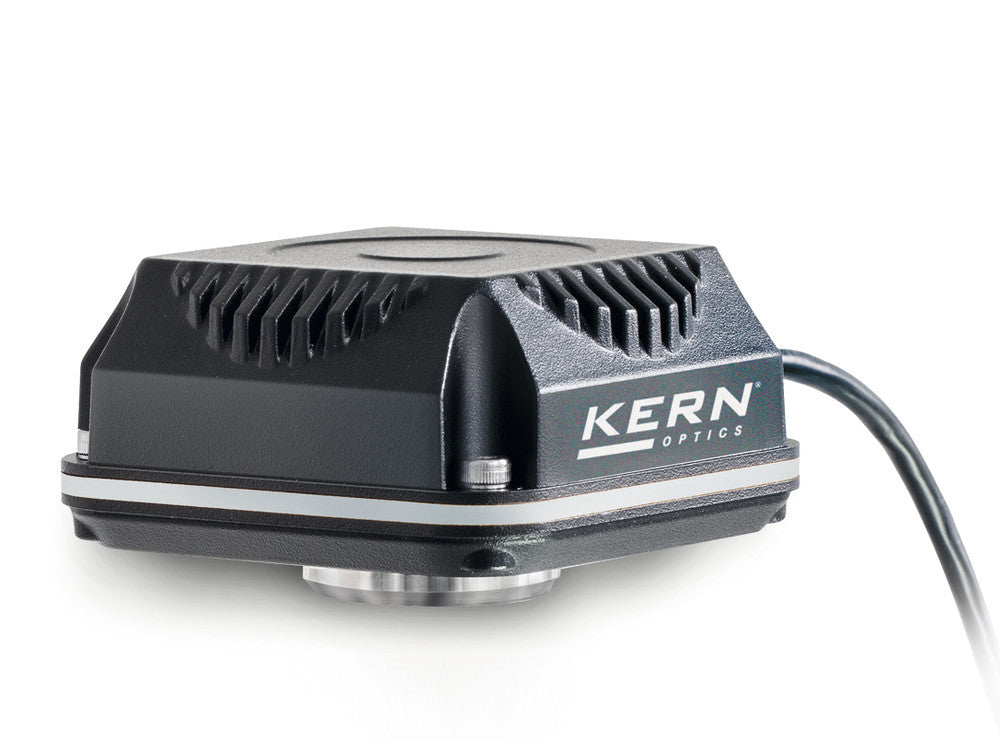

C-mount camera, ODC 832, incl. software, USB cable, eyepiece adapter, rings and lens micrometer
For conventional microscope use, and for demanding applications (e.g. darkfield, phase contrast and fluorescence).
- Fast and clear image transmission with proven CMOS technology
- USB 2.0 data transmission adequate for static samples. USB 3.0 version recommended for living samples (faster transmission without stalling)
- Multilingual software available. With the streaming, photo snapshot and video functions. Various measuring functions such as distance, surface and angular measurement, as well as manual counting possible. Image processing and documentation functions included
- Mounting possible either via C-mount connection on the third tube of the microscope or via the eyepiece
- Suitable C-mount adapter is provided by the microscope manufacturer. Eyepiece adapter (Ø 23.2 mm) and adapter rings (Ø 30.0 mm and 30.5 mm) are also supplied
- Supports the following operating systems: Win 7, Win 8, Win 10, Win 11
Delivery incl. USB cable, eyepiece adapter, rings and stage micrometer for calibrating the software. Please download the software free of charge.
Technical Information
| Type | ODC 832 |
| Height | 45 mm |
| Display | no |
| Sensor type | CMOS |
| Sensor format | 1/2,5″ |
| Number of pixels | 5.1 |
| pixel size | 2.2 x 2.2 µm |
| Images per second | 14,2 fps @ 2560 x 1922 38,3 fps @ 1280 x 960 101,2 fps @ 640 x 480 |
| Application | Bright field, dark field, phase contrast, polarisation, simple fluorescence |
| Connection | C-Mount |
| Port | USB 3.0 |
| W x D x H | 80 x 80 x 45 mm |
| Cable length | 2 m |
| Power supply | via USB connection |
