Description

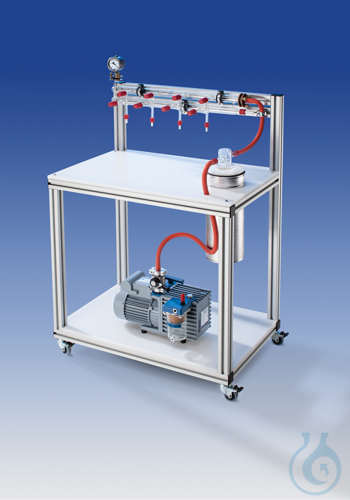

Chemistry pump stand GP3 is a mobile vacuum pump station equipped with a cold trap, glass pump fork with ventilation and an integrated manometer. The stand provides a KF-NW16 small-flange connection for the vacuum pump, including the connecting hose. The glass pump fork carries four Produran valves (6 mm with Viton O-ring seals), a GL18 sample port with 10 mm PTFE olive, four ventilation valves (6 mm Viton O-ring) and a ventilation port (GL18 with angled 10 mm PTFE olive). Connections to the cold trap and manometer are KF-NW16, each supplied with clamp and Viton O-ring. The cooling finger SL 29-GL is paired with Dewar vessel 18 CAL-S and a two-part support ring. Table and base plates are 12 mm PE; the frame is constructed from aluminium profile tubing and runs on four lockable castors. Supplied as one complete unit from manufacturer KGW Isotherm, the station includes a handbook and is designed for laboratory vacuum work requiring cold-trap protection, multi-port sample handling and convenient mobility. Net weight is 35 kg.
Key features
- Pack size: 1 pc
- Product type: Chemistry pump stand GP3
- Vacuum connection: KF-NW16 (hose included)
- Pump fork: Glass with 4 Produran valves (6 mm, Viton O-ring)
- Sample port: GL18 with 10 mm PTFE olive
- Cold trap: Cooling finger SL 29-GL with Dewar 18 CAL-S
- Technical Information Sheet:
