Description

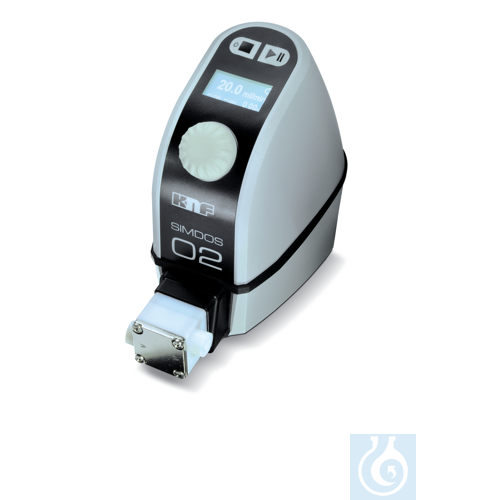

Dosing pump SIMDOS® 02, FEM1.02FT.18S PTFE is a chemically resistant diaphragm dosing pump for precise metering of liquids. It offers a flow rate of 0,03–20 ml/min at zero delivery head, a pressure head of 60 mWS and a suction head of 2 mWS. The pump head is executed in PTFE, while the diaphragm and valves are made of FFKM, providing broad chemical compatibility. Flow rate is adjustable manually (version S). An additional safety diaphragm maximises protection, and the delivery membrane can be changed easily via the maintenance command stored in the operating programme. Hose connection is ID 1,6 mm / OD 3,2 mm. Permissible ambient temperature is +5 to +40 °C and media temperature +5 to +80 °C. The compact unit measures 93 × 144 × 150 mm and weighs 0,9 kg. Scope of delivery includes the dosing pump, suction filter, 2 m connection tubing and power supply. This SIMDOS® 02 model from manufacturer KNF is intended for laboratory liquid dosing applications requiring PTFE/FFKM wetted parts.
This article is part of Peristaltic & dosing pumps, in Pumps, vacuum & evaporation.
Key features
- Pack size: 1 pc(s)
- Flow rate: 0,03–20 ml/min
- Pressure head: 60 mWS
- Suction head: 2 mWS
- Pump head material: PTFE
- Membrane and valves: FFKM
- Technical Information Sheet:
