Description

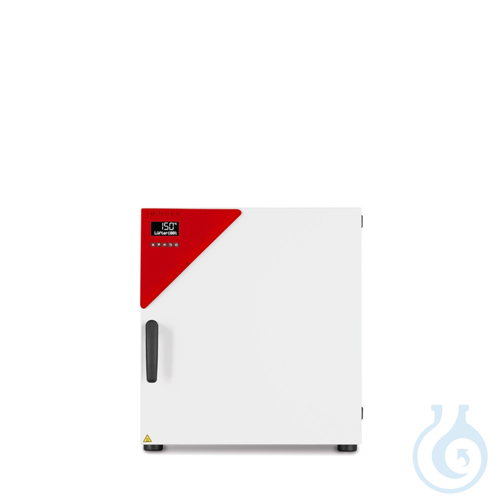

Drying and heating oven ED 56UL-120V is a natural-convection laboratory oven for routine drying and sterilisation work up to 300 °C. The temperature range extends from +5 °C above ambient temperature to +300 °C, with high temperature accuracy provided by APT.line™ technology. Natural convection supports efficient, uniform thermal processes and rapid, even drying. Nominal volume is 57 l. A controller with LCD display, electromechanical exhaust-air flap control, and USB connection for data recording facilitate everyday operation. Two chrome-plated shelves are included; the unit is stackable. An integrated temperature selector limiter class 2 (DIN 12880) with optical alarm enhances safety, and the handle design is ergonomic. An Ethernet interface is available for connectivity. Strengths of this ED series oven from manufacturer Binder include energy use up to 30 % lower than typical comparable instruments and dependable performance for drying and heating tasks. Configuration is 120 V with United States type A/B mains plug; net weight is 48 kg (gross 50 kg).
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 57 l
- Temperature range: +5 °C above ambient to +300 °C
- Convection: natural convection
- Controller: LCD display; Ethernet interface
- Safety: temperature selector limiter class 2 (DIN 12880), optical alarm
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 360 × 380 × 420 mm (W × D × H)
- Exterior dimensions: 560 × 565 × 625 mm (W × D × H)
- Weight, empty: 39 kg
- Voltage: 120 V, 60 Hz
- Nominal power: 1.15 kW
- Temperature uniformity at 150 °C: ±2.3 K
- Temperature fluctuation at 150 °C: ±0.4 K
- Heating-up time to 150 °C: 50 min
- Recovery time after a 30 s door opening at 150 °C: 19 min
- Air change rate at 100 °C: 8 x/h

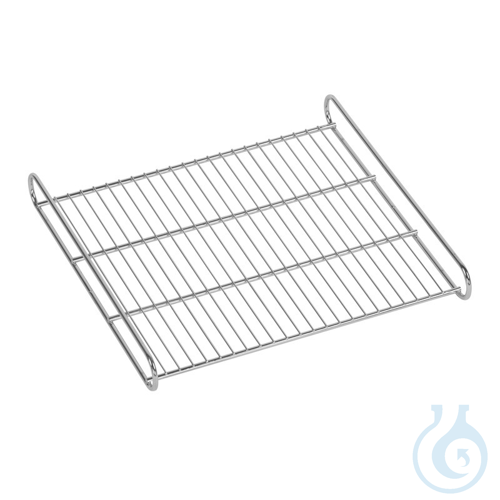

- Shelves, standard / maximum: 2/4
- Load per rack: 30 kg
- Permitted load: 70 kg
- Energy consumption at 100 °C: 105 Wh/h
- Energy consumption at 150 °C: 180 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Technical Information Sheet:
- Data Sheet:
