Description

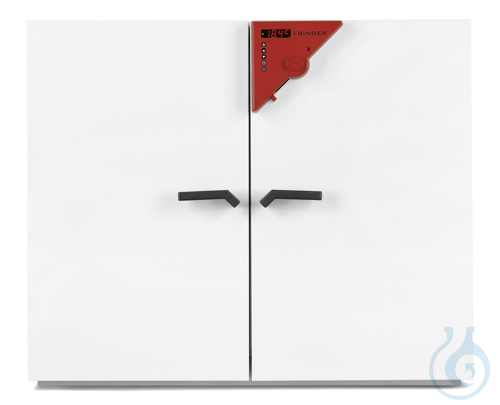

Drying and heating oven ED400-400V-I is a natural-convection laboratory oven for routine drying and sterilisation work up to +300 °C. With a nominal volume of 400 l and a temperature range from +5 °C above ambient temperature to +300 °C, it supports efficient, uniform thermal processing without forced-air circulation. APT.line™ preheating chamber technology and natural convection help thermal processes run efficiently, while an adjustable exhaust air damper allows controlled venting. The oven is equipped with a controller with time functions and two chrome-plated shelves. A class 2 temperature selector limiter to DIN 12880 with optical alarm enhances operational safety. Ethernet connectivity supports integration into laboratory networks. Designed for fast, even drying, this unit from manufacturer Binder suits everyday drying, heating, and sterilisation tasks in research and quality-control laboratories. Supplied as 1 pc; net weight 158 kg, gross weight 160 kg.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 400 l
- Temperature range: +5 °C above ambient to +300 °C
- Convection: Natural convection
- Forced-air tempering: No
- Temperature limiter: Class 2 (DIN 12880) with optical alarm
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 1000 × 520 × 800 mm (W × D × H)
- Exterior dimensions: 1235 × 765 × 1025 mm (W × D × H)
- Weight, empty: 125 kg
- Voltage: 400 V, 50/60 Hz
- Nominal power: 3.4 kW
- Temperature uniformity at 150 °C: ±3 K
- Temperature fluctuation at 150 °C: ±0.5 K
- Heating-up time to 150 °C: 71 min
- Recovery time after a 30 s door opening at 150 °C: 31 min
- Air change rate at 150 °C: 10 x/h
- Shelves, standard / maximum: 2/10
- Load per rack: 35 kg
- Permitted load: 90 kg
- Energy consumption at 150 °C: 672 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers ED400-400V-I
What is this article?
Drying and heating chambers ED400-400V-I is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
