Description

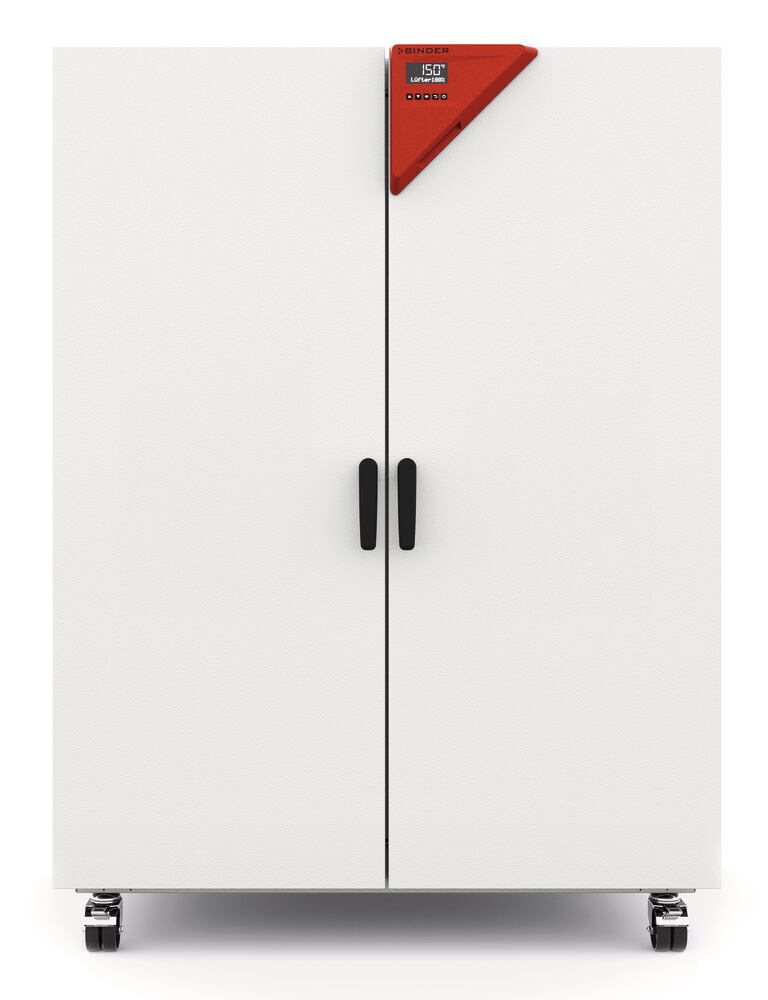

Drying and heating oven ED720-400V is a large natural-convection laboratory oven for routine drying and sterilisation work up to 300 °C. It offers a nominal volume of 743 l and a temperature range from ambient temperature +5 °C to +300 °C, with high temperature accuracy provided by APT.line™ technology. Natural convection ensures efficient thermal processes and fast, uniform drying; the series is up to 30 % more energy-efficient than conventional devices. Features include a controller with LCD display, electromechanical exhaust-flap control, two chrome-plated racks, program memory, timer, integrated temperature selector limiter Class 2 (DIN 12880) with optical alarm, ergonomic handle design, USB port for data recording and Ethernet interface. Devices up to 115 l are stackable. Supplied as 1 pc with Euro plug (Type C), the oven (Binder) supports demanding laboratory drying tasks. Net weight is 191 kg; gross weight is 193 kg.
This article is part of Drying ovens & climate chambers, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Nominal volume: 743 l
- Temperature range: ambient +5 °C to +300 °C
- Convection: natural convection
- Technology: APT.line™
- Program memory: yes
- Manufacturer: Binder
- UNSPSC: 41104502
- Interior dimensions: 960 × 605 × 1280 mm (W × D × H)
- Exterior dimensions: 1165 × 870 × 1590 mm (W × D × H)
- Weight, empty: 169 kg
- Voltage: 400 V, 50/60 Hz
- Nominal power: 4.1 kW
- Temperature uniformity at 150 °C: ±3.2 K
- Temperature fluctuation at 150 °C: ±0.8 K
- Heating-up time to 150 °C: 85 min
- Recovery time after a 30 s door opening at 150 °C: 25 min
- Air change rate at 100 °C: 2 x/h
- Shelves, standard / maximum: 2/16
- Load per rack: 45 kg
- Permitted load: 315 kg
- Energy consumption at 100 °C: 380 Wh/h
- Energy consumption at 150 °C: 700 Wh/h
- Wall clearance, side: 100 mm
- Wall clearance, back: 160 mm
- Technical Information Sheet:
- Data Sheet:
Recently viewed
You may also like
Questions about Drying and heating chambers ED720-400V
What is this article?
Drying and heating chambers ED720-400V is the article on this page. Luminix Health distributes Binder for laboratory use. It sits in Drying ovens & climate chambers, inside Heating, drying & cooling, in Lab instruments.
A drying oven holds a temperature above ambient to drive off water or to condition a sample. A climate chamber also holds humidity. Uniformity across the chamber, not only the set point, decides whether two samples on different shelves saw the same conditions.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
