Description

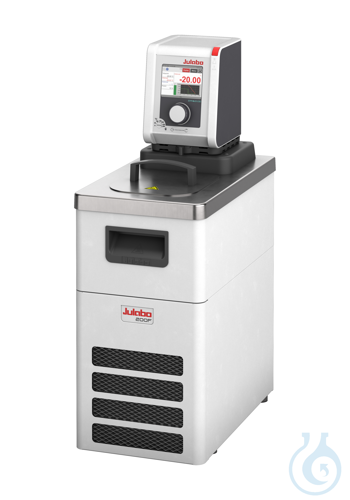

DYNEO DD-200F refrigerated circulating thermostat covers a wide working temperature range for internal and external temperature-control applications. A space-saving evaporator coil design maximises usable bath volume inside the stainless-steel vessel, which features an integrated cover and a medium opening of 13 × 15 cm with 15 cm depth. The continuously adjustable pressure immersion pump delivers 27 l/min and 0,7 bar, with easy switching between internal and external circulation. A multilingual 3,5-inch colour TFT display and central rotary controller provide intuitive operation, complemented by an integrated programmer, external Pt100 connection and USB interface; RS232 or analogue options are available. Powerful refrigeration maintains precise performance even at ambient temperatures up to +40 °C, supported by a removable ventilation grille and an integrated drain tap for safe emptying. Hose olives for 8 mm and 12 mm i.d. tubing are included for the M16×1 pump connections. Cooling capacity data follow DIN 12876. This refrigerated circulator (Julabo) suits laboratories needing compact, reliable low-temperature control. Net weight is 25,700 kg; supplied as 1 pc.
This article is part of Test inks & surface tension, in Test kits & water analysis.
Key features
- Pack size: 1 pc
- Bath vessel: Stainless steel with integrated cover
- Bath opening (W × D / depth): 13 × 15 / 15 cm
- Pump type: Pressure immersion pump
- Pump performance: 27 l/min, 0,7 bar
- Display: Multilingual 3,5-inch colour TFT
