Description

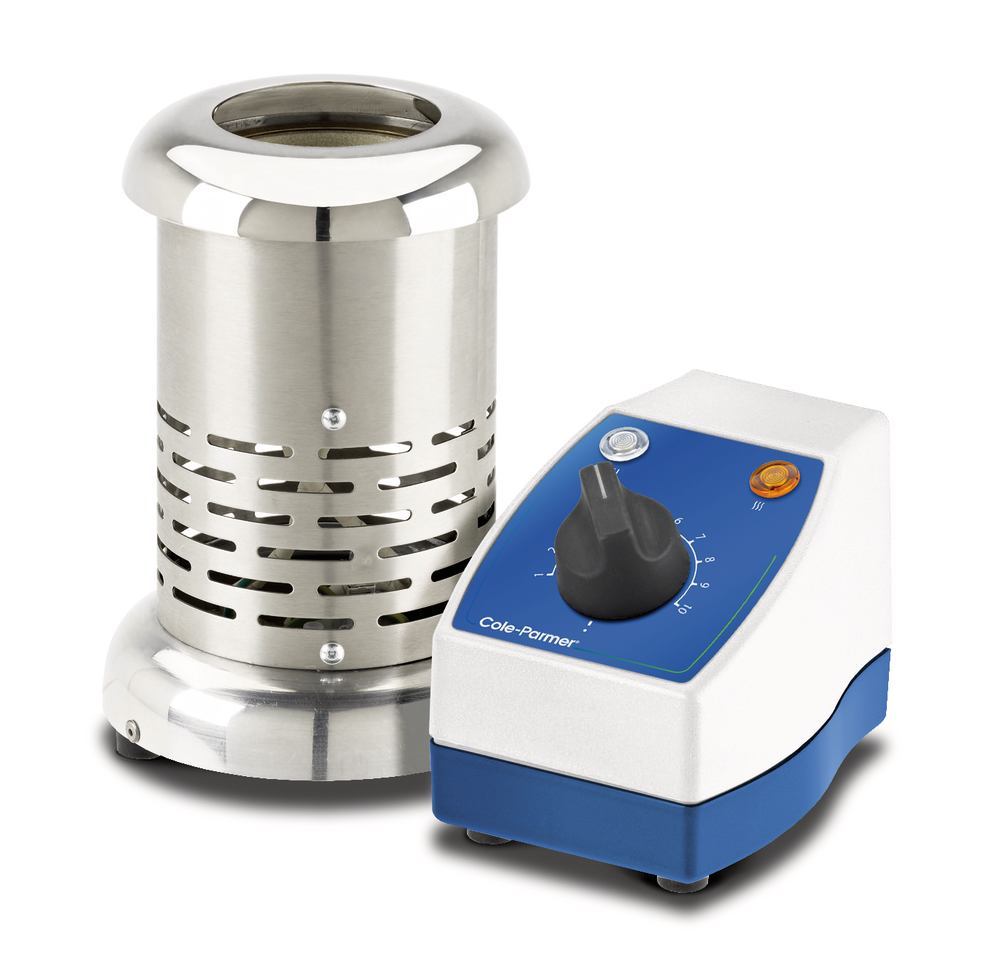

Electrical Bunsen burner BB-200-CN
Suitable for laboratories in which no gas and naked flames are allowed to be used. Ideal for heating test tubes, crucibles, small bottles and beakers. Max. temperature of 800 °C. The ceramic heating element is located in the upper part of the stainless steel cylinder. 80% of max. temperature is reached in approx. 4 min and maximum temperature is reached in approx. 12 min. Heating element: inner dimensions (Ø x H): 60 x 45 mm, chimney: outer dimensions (Ø x H): 120 x 180 mm Heat output regulator CN-200: with special sleeve for attaching a stand rod (max. Ø 12.5 mm) and indicator lights for "Power On" and "Output regulator operation". Dimensions of heat output regulator (W x D x H): 95 x 130 x 105 mm.
Delivery incl. heat output regulator CN-200.
Technical Information
| Type | BA6101 |
| Temperature range | to +800 °C |
| Performance | 480 W |
| Mains connection | 250 V, 50/60 Hz |
