Description

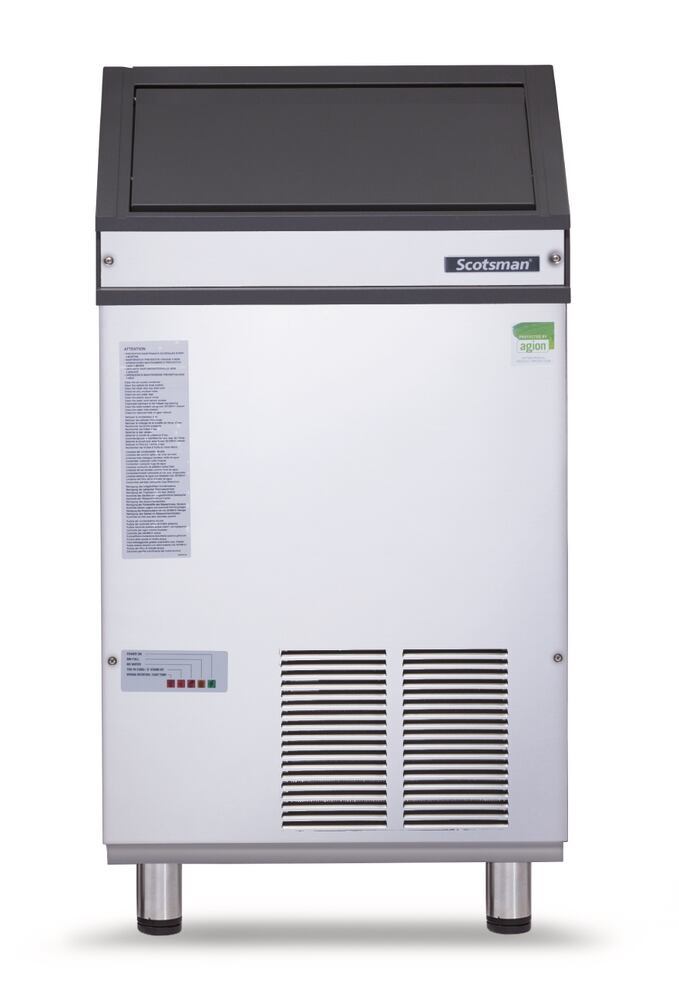

Flake ice machine with ice storage tank, SCOTSMAN® EF 107 OX VE, max. 130 kg, With waste water pump, storage tank 30 kg, demineralised water connection laboratory version incl. scoop, supply hose 3/4 inches (length 1.5 m), drainage hose (Ø 20 mm, length 1.5 m)
Applications: laboratories, research institutes and industry.
- Stainless steel version, air-cooled
- With XSafe - integrated natural hygiene unit (UV light)
The ice flakes have a temperature of 0.5 °C; the irregular, large surface delivers a very good cooling effect. Each flake is saturated and firm and they do not stick together.With additional waste water pump (waste water can be pumped up to a height of 1.7 m or up to a distance of 15 m).
Two versions are available:standard version for operation with drinking water. A laboratory version for operation with demineralised water (conductivity ≤30 μS) is also available.
| Type | EF 103 OX VE |
| Storage capacity | 30 kg |
| Max. output in 24 h | 130 kg |
| Power consumption | 400 W |
| Width | 592 mm |
| Depth | 622 mm |
| Height | 1078 mm |
| Operating limits | room temperature: min. 10 °C/max. 43 °Cwater temperature: min. 5 °C/max. 38 °Cwater pressure: min. 1 bar/max. 5 bar |
| Weight | 76 kg |
| Mains connection | 230 V, 50 Hz |
