Description

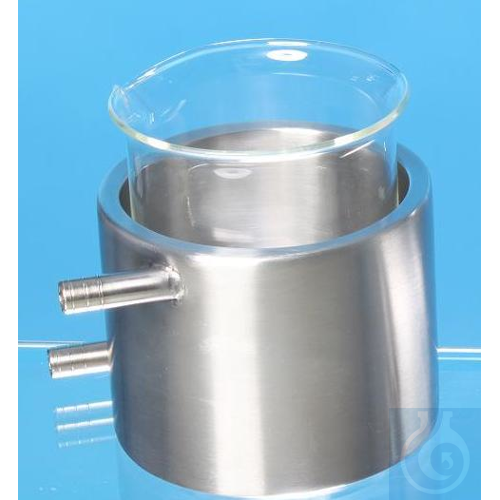

Double jacket made of stainless steel for reliable temperature control of your samples.
The incubation jackets are made to fit beakers and laboratory bottles from DWK (Duran), but can also be used without sample vessels.
For improved heat transfer, the incubation jacket can be
can be equipped with a temperature-controlled floor and insulation.
Both options cannot be retrofitted and must be ordered with a jacket.
A flat, non-tempered floor can also be ordered ex works, at no extra charge.
- Controlled temperature control of reactions
- Easy exchange of reaction vessels (e.g. beaker or laboratory bottle)
- Tube olives for external temperature control
- Use with magnetic stirrers
DURAN® Art: 112111629, 150 ml high form.
Options:
SON05000I1 Insulation
SON05000B1 Base
Available accessories:
L14023202 Stainless steel magnetic stirrer
Important operating accessories:
L14020T* Recirculating chiller, temperature range: down to -10 ...
886710040 Heat thermostat Temperature range: 45..200 °C
886710040K Cold-heat thermostat ,Temperature range: 10 ... 100 °C
We are happy to produce according to your desired dimensions.
Please contact us!
Inner diameter: approx. 55 mm
Jacket height: approx. 65 mm
