Description

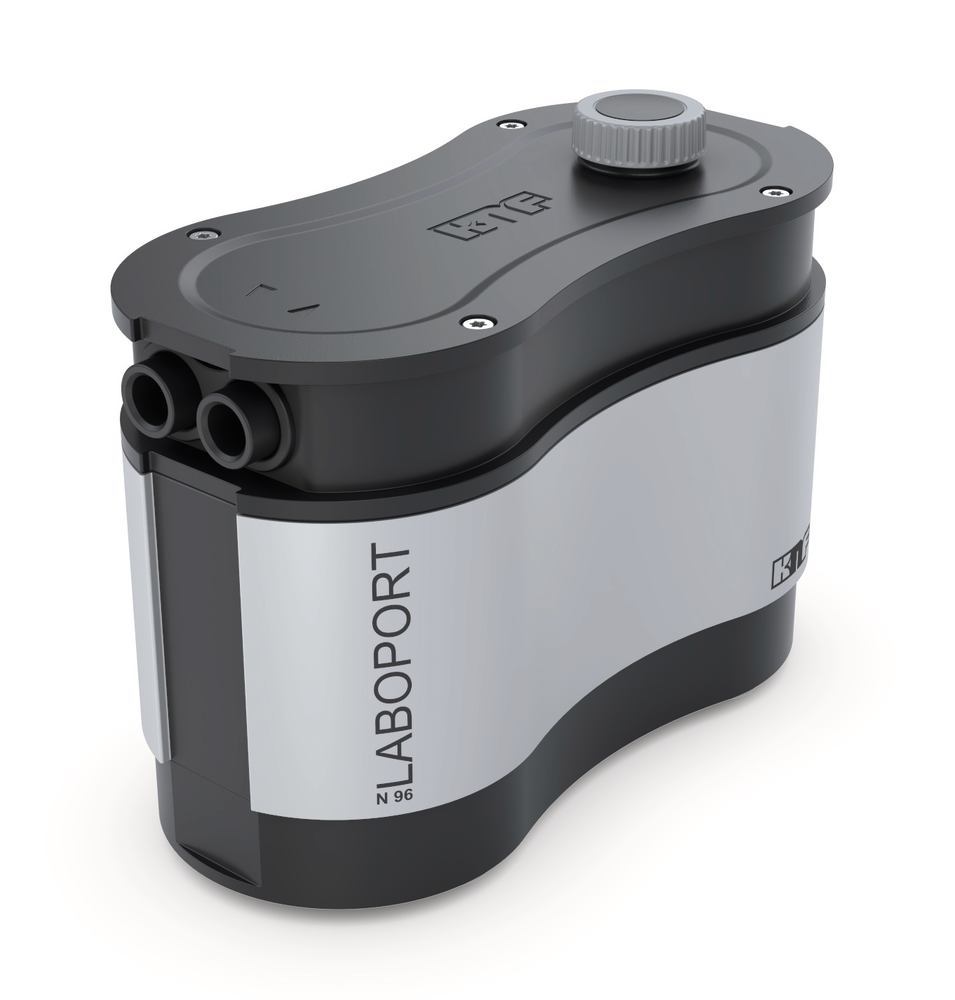

LABOPORT® diaphragm vacuum pump, speed-controlled, N 96
Chemically resistant diaphragm pump, compact in design, with small footprint. Can be easily adapted to the respective application by means of integrated, manual speed control via a rotary knob. Very energy efficient and quiet. Surface is very easy to clean.
Application: filtration, liquid suction.
Technical Information
| Type | N 96 |
| Suction capacity (l/min) | 7.0 |
| Suction capacity (m³/h) | 0.4 |
| End vacuum (abs.) | 130 mbar |
| Overpressure | 2,5 bar |
| Media temperature | +5 - +40 °C |
| Connection | for hose inner Ø 4-6 mm |
| Motor power | 19 W |
| Ambient temperature | +5 - +40 °C |
| IP rating | 40 |
| Materials in contact with media | pump head: PPS diaphragm: PTFE-coated valves: FKM |
| W x D x H | 156 x 75 x 119 mm |
| Weight | 1,3 kg |
| Mains connection | 100-240 V, 50/60 Hz |
| ROTH for Future | yes |
