Description

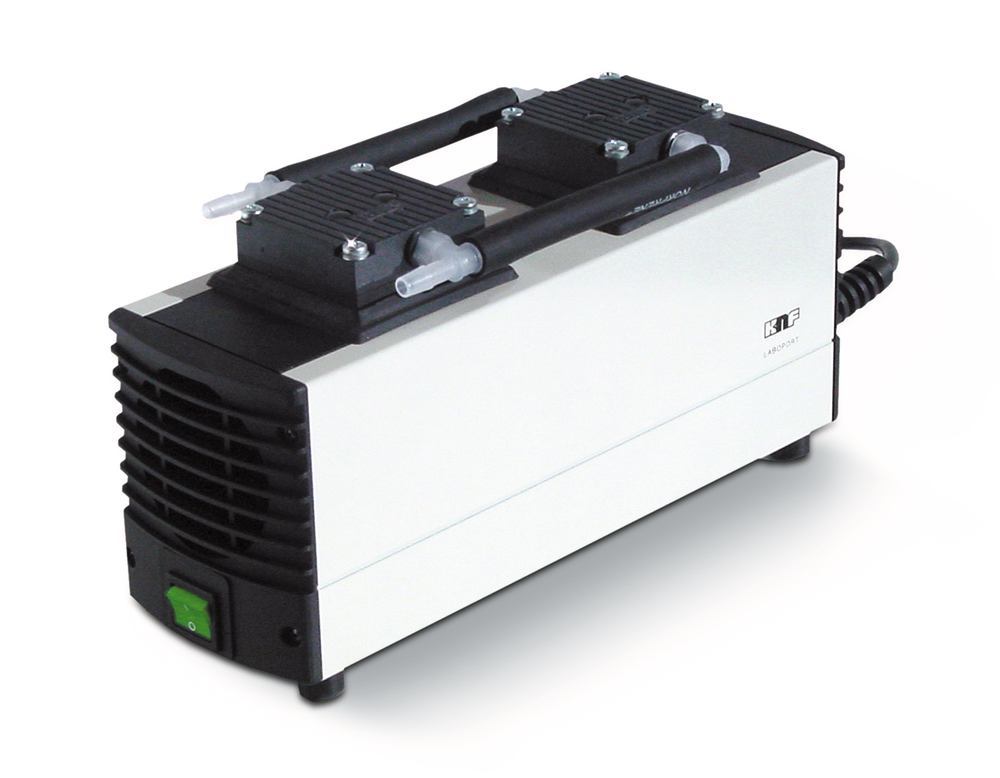

LABOPORT® diaphragm vacuum pump, N816.1.2.KT.18, 30 l/min, vacu. 160 mbar
Ideal for pumping and evacuating slightly aggressive or corrosive gases and vapours.
- Suitable for continuous operation
- Very quiet and low vibration
- Thermal switch and mains fuse
Technical Information
| Type | N 816.1.2 KT.18 |
| Suction capacity (l/min) | 30.0 |
| Suction capacity (m³/h) | 1.8 |
| End vacuum (abs.) | 160 mbar |
| Overpressure | 0,5 bar |
| Media temperature | +5 - +40 °C |
| Connection | for hose inner Ø 6 mm |
| Motor power | 100 W |
| Ambient temperature | +5 - +40 °C |
| IP rating | 20 |
| Materials in contact with media | pump head: PPS diaphragm: PTFE-coated valves: FFPM |
| W x D x H | 102 x 361 x 141 mm |
| Weight | 3,95 kg |
| Mains connection | 230 V, 50 Hz |
