Description

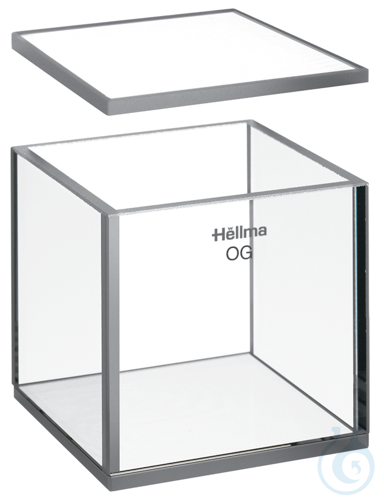

Large cuvette 704 is a precision spectroscopy cell fabricated from optical glass (type 700-OG) with a 40 mm path length and a usable wavelength window from 360 nm to 2500 nm. Supplied with a glass lid, it offers a fill volume of 0,056 l (56,000 µl) suited to longer-path absorbance work. Tight control of path-length accuracy and window parallelism underpins continuously reproducible measurement data. Thermal bonding instead of adhesive joints gives high resistance to temperature and chemicals and minimises the chance of liquid escape. Chosen optical glass provides transmission greater than 80 % for reliable photometric results. Chamfered edges make handling safer and more comfortable while lowering the risk of edge damage. These Hellma large cuvettes are manufactured entirely in Germany, can be cleaned and reused, and form a durable option for routine spectroscopy. Production is carried out according to EN ISO 9001 and EN ISO 14001 and satisfies demanding optical standards.
This article is part of Cuvettes.
Key features
- Pack size: 1 pc
- Material: Optical glass
- Path length: 40 mm
- Wavelength range: 360–2500 nm
- Fill volume: 0,056 l
- Product type: 704,002-OG
- Technical Information Sheet:
Recently viewed
You may also like
Questions about large cells, 704
What is this article?
large cells, 704 is the article on this page. Luminix Health distributes Hellma (IDL) for laboratory use. It sits in Cuvettes, in Labware.
A cuvette is an optical cell. The spectrophotometer or photometer sends a beam through a defined path length, usually 10 mm, and the absorbance is read from that path. Glass is for the visible range. Quartz or a UV-grade plastic is required below about 320 nm, because ordinary glass absorbs there. The path length and the wavelength window are the two numbers that choose the cell. The optical methods that use it sit with NIST and the BIPM. Laboratory ware is indexed under ISO laboratory apparatus.
