Description

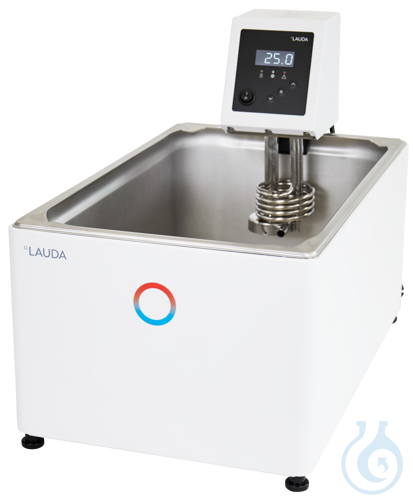

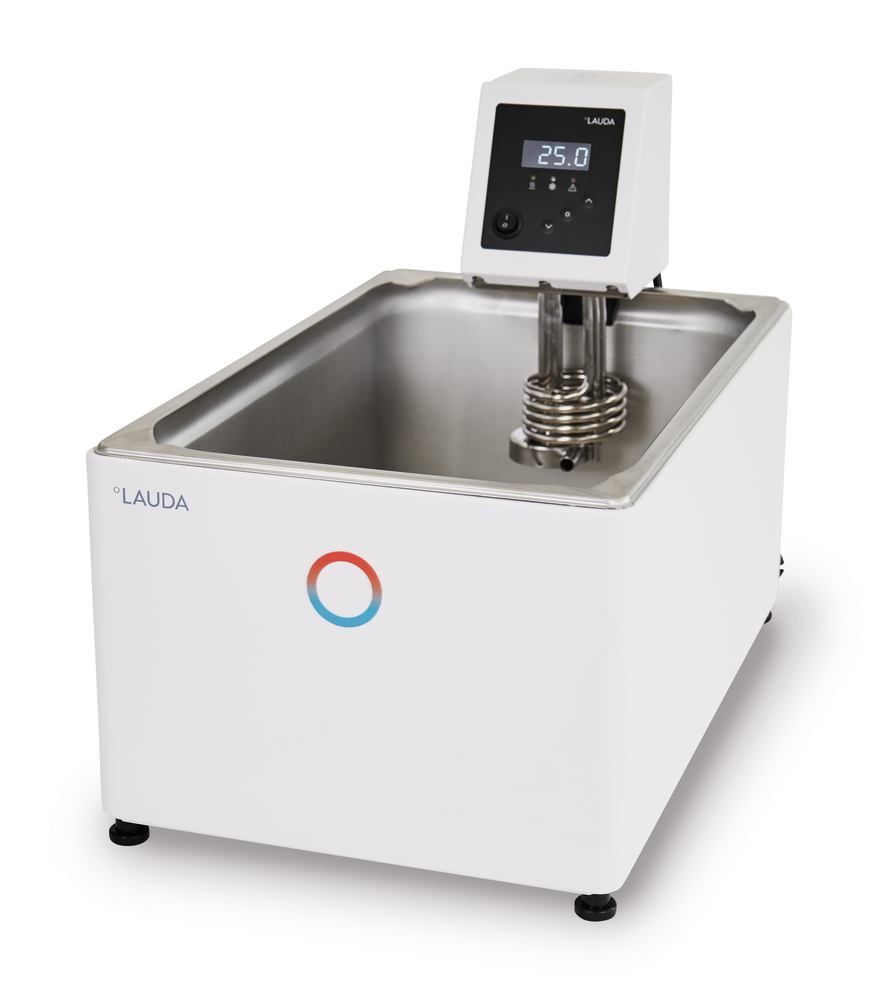

LAUDA Alpha A 24 heating thermostat is a bath thermostat built for simple laboratory temperature control across a working range of 25 to 100 °C and ambient conditions from 5 to 40 °C. Its one-line LED display presents actual or setpoint values, complemented by user-friendly menu navigation, three-button operation and a fully electronic continuous controller. Low-level and overtemperature protection enable safe operation with non-flammable liquids, with acoustic and visual alarms for clear fault indication. The unit integrates a circulation pump with flow reduction and a deep-drawn stainless-steel bath vessel; optional cooling coil and pump circulation set extend application scope. Per DIN 12876, temperature constancy is ±0,05 K, maximum heating power is 1,5 kW at 7 A, pump pressure reaches 0,2 bar and maximum pressure flow is 15 L/min. Bath volume spans 18,0 to 25,0 L with bath dimensions of 295 × 374 × 200 mm. External dimensions are 332 × 535 × 420 mm and net weight is 11 kg. Mains supply is 220 V; 60 Hz and 230 V; 50 Hz with angled Schuko plug (CEE7/7). One screw clamp for flow reduction is included as standard. This larger-capacity heating thermostat from manufacturer Lauda supports circulating baths and general laboratory temperature applications.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 piece
- Working temperature range: 25 … 100 °C
- Temperature constancy: ±0.05 K
- Bath volume min./max.: 18 / 25 L
- Heating capacity max.: 1.5 kW
- Pump flow max. (pressure): 15 L/min
- Manufacturer: Lauda
- UNSPSC: 41103701
- Ambient temperature: 5...40 °C
- Current consumption: 7 A
- Pump pressure, maximum: 0.2 bar
- Pump flow, pressure: 15 L/min
- Bath volume: 18 / 25 L
- Bath dimensions: 295 × 374 × 200 mm
- Exterior dimensions: 332 × 535 × 420 mm
- Weight: 11 kg
- Voltage: 220 V; 60 Hz / 230 V; 50 Hz
- Technical Information Sheet:
Recently viewed
You may also like
Questions about LAUDA Alpha A 24 Heating thermostat 220 V; 60 Hz + 230 V; 50 Hz
What is this article?
LAUDA Alpha A 24 Heating thermostat 220 V; 60 Hz + 230 V; 50 Hz is the article on this page. Luminix Health distributes Lauda for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
