Description

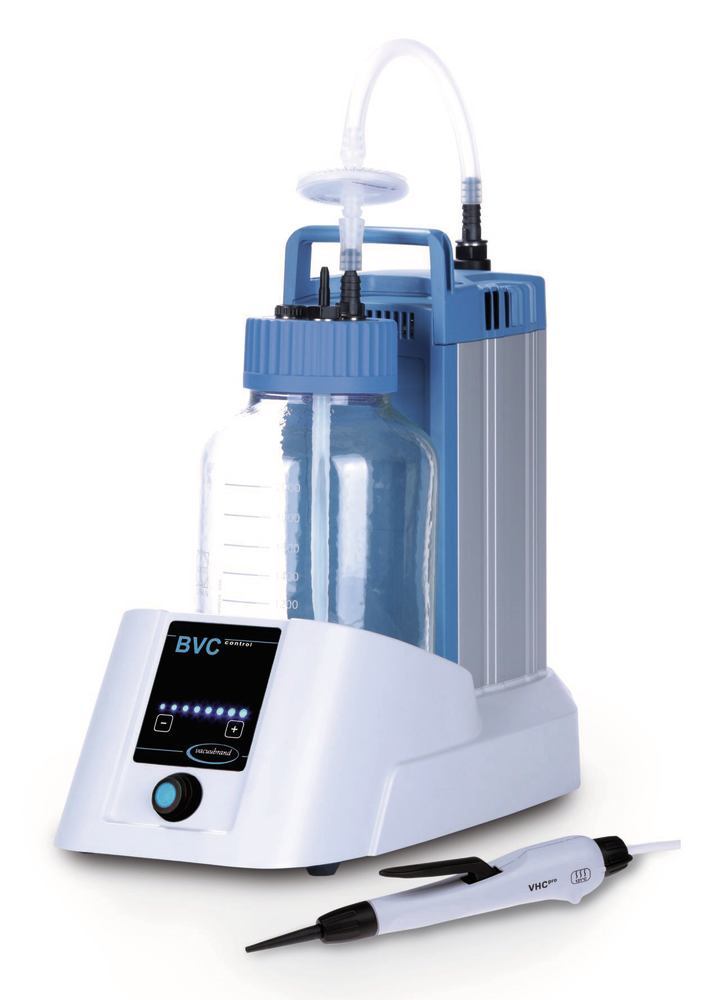

Liquid extraction station, BVC Control G, incl. diaphragm pump, 2 l glass collecting bottle, protective filter, extraction handle, various adapters and silicone hose
Safe, precise and effective extraction of liquids in all areas of laboratory work (chemistry, biochemistry and biology).
- Ergonomic VHCpro extraction handle with continuous tube; mechanism does not come into contact with fluids
- With swivelling pipette holder, for left- and right-handed users
- Lockable button for continuous extraction, µl precision extraction using thumbwheel
- Simultaneous extraction at two workstations is possible by connecting an optional second extraction handle
- Hydrophobic protective filter with 0.2 µm pore size for protection of the pump unit and the surrounding area
- With powerful, chemical-resistant ME 1C diaphragm pump (switch-off vacuum of 150 mbar abs., delivery rate of 11.7 l/min)
- Continuous precision adjustment of vacuum/suction power electronically via touch panel
- Continuous vacuum with minimised pumping times thanks to automatic pump activation/deactivation
- Very low noise level for a pleasant working environment
Delivery incl. diaphragm pump and control unit, housing, collecting bottle (vacuum-resistant, autoclavable), sterilisable protective filter (0.2 μm pore size), VHCpro extraction handle (autoclavable), three adapters for mounting different pipettes and tips, silicone hose (length: 2 m).
Technical Information
| Type | BVC Control G |
| Version | 2 l glass collecting bottle, with hose nozzles |
| Bottle volume | 2000 ml |
| Pump type | ME 1C |
| Suction capacity (l/min) | 11.7 |
| End vacuum (abs.) | 150 mbar |
| Control range | 850-150 mbar |
| Ambient temperature | +10 - +40 °C |
| L x W x H | 408 x 194 x 430 mm |
| Weight | 7,7 kg |
| Mains connection | 230 V, 50/60 Hz |
