Description

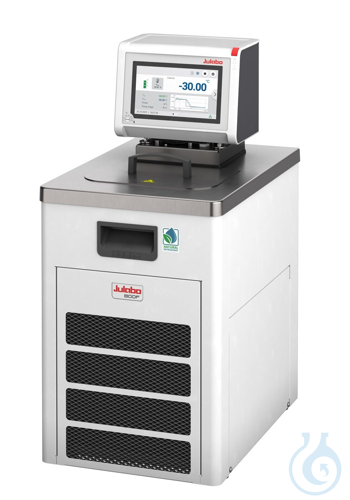

MAGIO MS-800F refrigerated circulator with natural refrigerant is a premium temperature-control system for demanding external applications in basic research, materials testing and technical installations. The stainless-steel bath vessel has an integrated cover and a usable bath opening of 18 × 13 cm with 15 cm depth. Working temperature range is −40 to +200 °C with temperature stability of ±0,01 °C and display resolution of 0,01 °C. A continuously adjustable, high-performance pressure/suction immersion pump supplies 16 to 31 l/min flow, 0,24 to 0,92 bar delivery pressure and 0,03 to 0,4 bar suction pressure; medium-wetted parts are stainless steel and pump connections M16×1 are integrated. A large high-resolution TFT touch display with multilingual interface, integrated programmer, external Pt100 connection, USB, RS232 and Ethernet support complex process control; analogue interfaces are available as accessories. The unit is Class III (FL) according to DIN 12876-1 and provides Stakei sockets for a cooling-water solenoid valve. Delivery includes two hose olives each for 8 and 12 mm i.d. tubing. This MAGIO series instrument from manufacturer Julabo delivers high cooling power with precise, intuitive external tempering. Net weight is 44 kg.
This article is part of Circulators, chillers & thermostats, in Heating, drying & cooling.
Key features
- Pack size: 1 pc
- Refrigerant type: Natural refrigerant
- Working temperature range: −40 to +200 °C
- Temperature stability: ±0,01 °C
- Bath opening: 18 × 13 cm / 15 cm depth
- Pump performance: 16–31 l/min; 0,24–0,92 bar; suction 0,03–0,4 bar
Recently viewed
You may also like
Questions about MAGIO MS-800F Refrigerated/heating circulator with natural refrigerant
What is this article?
MAGIO MS-800F Refrigerated/heating circulator with natural refrigerant is the article on this page. Luminix Health distributes Julabo for laboratory use. It sits in Circulators, chillers & thermostats, inside Heating, drying & cooling, in Lab instruments.
A circulator or thermostat holds a bath liquid at a set temperature and pumps it through a jacket. A chiller is the same idea aimed below ambient. The temperature range, the cooling power and the pump flow are the three numbers. The fluid has to match the range.
Temperature equipment either holds a set point or drives a sample toward one. An oven dries. A furnace reaches the temperatures of ashing and melting. A bath surrounds a vessel with water or oil. A circulator moves that fluid. An incubator holds the mild warmth of a culture. An autoclave uses steam under pressure to sterilise. The number that matters is the temperature the article actually reaches, not the number painted on the dial. Temperature is part of the international system kept by the BIPM and compared by EURAMET.
