Description

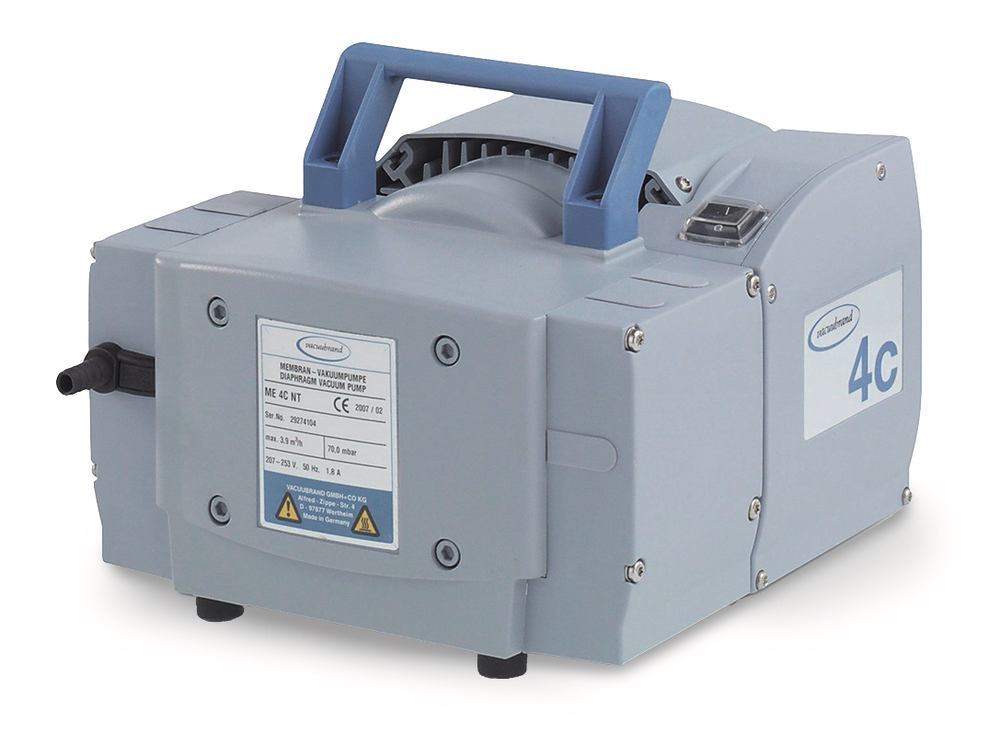

ME 4C NT diaphragm pump, 70 mbar vacuum, with silencer
Ideal for analytic applications in the laboratory and industrial operations.
- Continuous, oil-free evacuation and conveying of gases
- Very low leak rate thanks to particularly tightly sealed connection technology. Reliable output data
- Long diaphragm service life
- Particularly quiet and smooth running thanks to compact drive
- Long service life
- Easy diaphragm and valve replacements
Specially designed for aggressive gases and vapours.Long diaphragm service life thanks to the diaphragms’ PTFE sandwich design.
Technical Information
| Type | ME 4C NT |
| Cylinder | 2 |
| Steps | 1 |
| Suction capacity (l/min) | 65.0 |
| Suction capacity (m³/h) | 3.9 |
| End vacuum (abs.) | 70 mbar |
| Overpressure | 0,1 bar |
| Media temperature | +10 - +40 °C |
| Inlet connection | for hose inner Ø 8-10 mm |
| Outlet connection | 2 x silencer / G1/4″ |
| Motor power | 180 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 40 |
| Noise level | 45 db |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: PTFE |
| W x D x H | 243 x 254 x 198 mm |
| Weight | 11 kg |
| Mains connection | 200-230 V, 50/60 Hz |
