Description

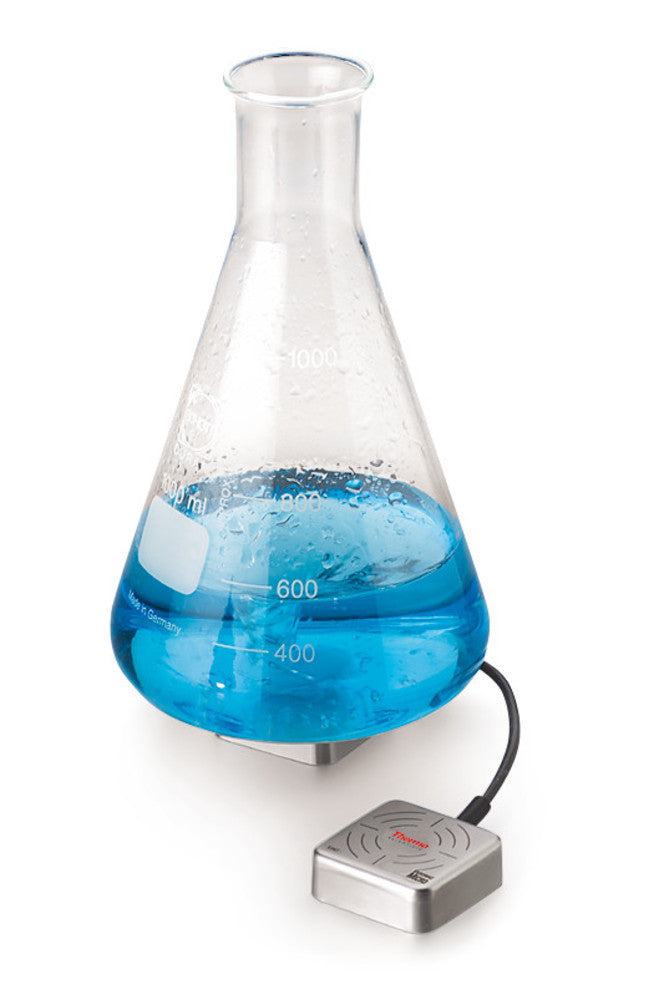

Micro Magnetic stirrer Cimarec, control unit, max. 1 l, 130-1400/min
With induction drive. Compact design for applications with low volumes. Ideal for operation in demanding environments and water baths.
Micro magnetic stirrer:
- High temperature resistance up to 95 °C in water and 120 °C in air
- Hermetically-sealed stainless steel housing, waterproof and dustproof acc. to IP 68
- Can be remotely controlled (corded) with a separate Telemodul 20 C control unit
Telemodul 20 C control unit:
- Graphic display
- Vertical mixing (Shake mode)
- 3 assignable program keys for quick starting routines. The most recent setting is stored automatically
- Three-stage adjustable start-up times for safe acceleration of the magnetic rod
- Intermittent operation with freely selectable stirring times and pause times as well as rotation direction reversal (5 s to 1 h)
- Four-stage adjustable nominal stirring power (25/50/75/100%); high power for viscous media, reduced power for long-term heat-free operation
- 5 years warranty
| Technical specifications for Telemodul 20 C | |
| Speed constancy | ±1 % |
| Nominal stirring power | 20 W |
| Output voltage | VDC 20 |
| Dimensions (W x D x H) | 155 x 165 x 95 mm |
| Perm. ambient temperature | 0 to +40 °C at 80 % RH |
| Power supply | 100-240 V, 50/60 Hz |
| Weight | 0.6 kg |
Delivery incl. micro magnetic stirrer and Telemodul 20 C control unit.
Technical Information
| Type | Cimarec Micro |
| Number of stirring points | 1 |
| Max. stirring capacity (H2O) | 1 l |
| Speed range | 130 to 1400 rpm |
| Power setting | 2/4/6/8 W |
| Control line | L 2 m / Ø 4 mm |
| W x D x H, total | 48 x 48 x 16 mm |
| IP rating | 68 |
| Operating temperature in water | 0 to +95 °C (100 % RH) |
| Operating temperature | -10 to +120 °C at 95 % RH |
| Weight | 0.2 kg |
