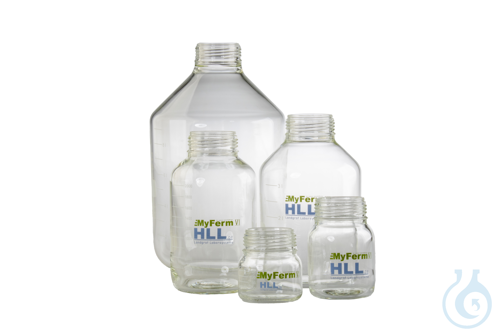

MyFerm VI reaction vessel, 3.5 litres

Reaction vessel MyFerm VI with a nominal volume of 3,5 l is a basic laboratory reaction vessel designed for modular expansion into a complete lab system. The type B configuration is supplied without baffles and without additional ports in the shoulder area, offering a clean vessel geometry for flexible setup. Manufactured from borosilicate glass 3.3 (Clean Save laboratory glass to DIN ISO 3585), it combines high chemical and temperature resistance with a wide-neck GL 80 central threaded closure. External diameter is 160 mm and overall height approximately 270 mm, with working volume measured up to shoulder height. The vessel is autoclavable and sterilizable, supporting repeated use in controlled laboratory environments. Suitable for stirred reactors, bioreactors and fermenter applications, this MyFerm VI unit from manufacturer Landgraf HLL can be extended with accessories such as in-build heat exchangers, thermostats and exhaust filters to build a full process setup. Pack size is one piece for straightforward integration into existing MyFerm workflows.

This article is part of Other instruments & spare parts.

Key features

• Pack size: 1 pc
• Nominal volume: 3,5 l
• Outer diameter: 160 mm
• Height: 270 mm
• Thread: GL 80
• Neck type: Wide neck
