Description

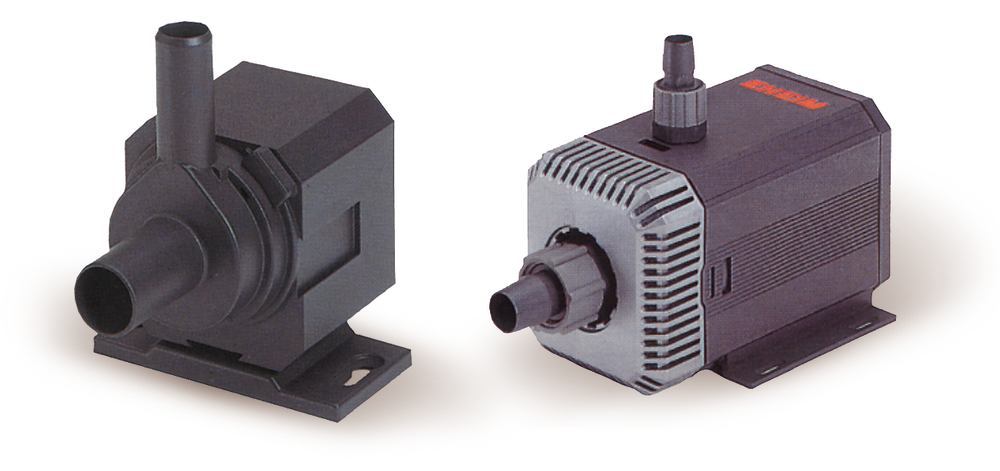

Rotary pump, model 2, lift of pump max. 3.7 m, 40 l/min
With magnetic coupling for conveying and recirculating water. Complete with 1.5 m cable and connector.
- Can also be used within the pumped medium
- Output is non-adjustable
- Suitable for continuous operation
- Not self-priming. Not suitable for dry operation
| Type | eco 2 |
| Delivery rate | 40 l/min |
| Delivery height | 3.7 m |
| Media temperature | +4 - +35 °C |
| Inlet connection | 28 mm/3/4″ |
| Outlet connection | 18 mm/3/4″ |
| Power consumption | 65 W |
| IP rating | 67 |
| L x W x H | 218 x 116 x 161 mm |
| Weight | 2.5 kg |
| Mains connection | 230 V, 50 Hz |
