Description

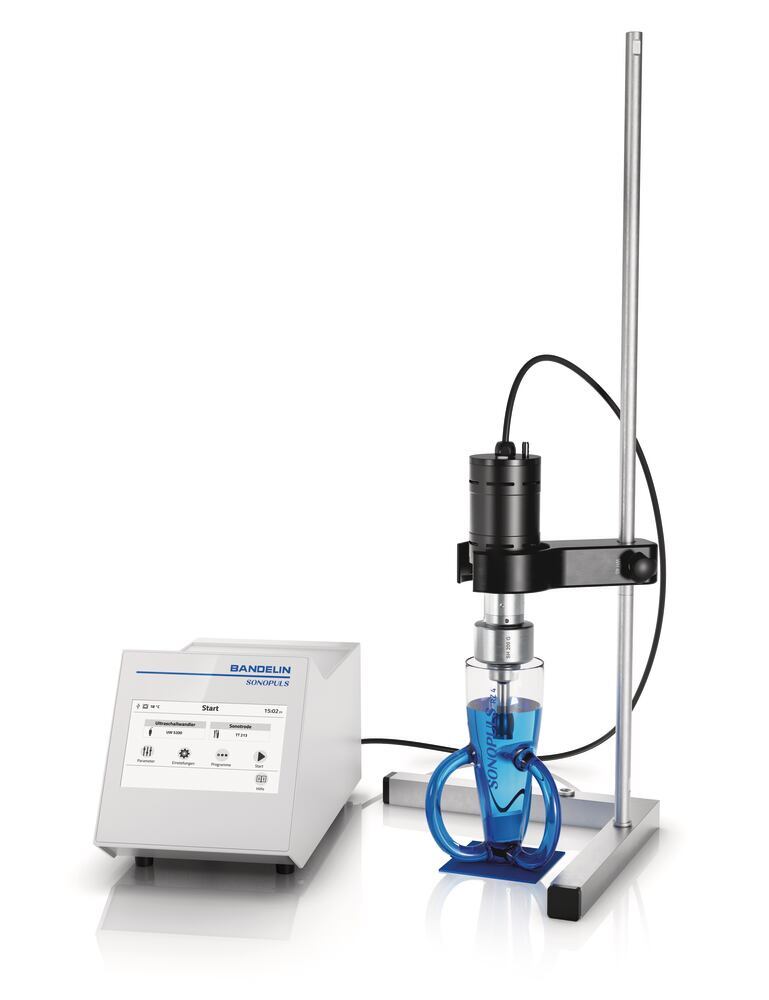

SONOPULS ultrasonic homogeniser, HD 5200 set, mx. vol. 5-1000ml, mx. 200W, includes GM 5200 ultrasonic generator, UW 5200 ultrasonic transducer, SH 200 G booster horn, TS 213 sonotrode with Ø 13 mm, L 5 mm (for volumes of 20 to 900 ml).
Applications: cell disruption, homogenising, deagglomerating, emulsifying, suspending, accelerating chemical reactions or disruption of cells, bacteria, fungi or spores are the main areas of application.
- Ultrasonic transducer with 7″ touch display for displaying actual and target values for amplitude, pulsation and time
- Amplitude adjustment in 1% increments (from 10 to 100%)
- Power control in watts possible via slider or numerical indication
- Selectable time settings: timer (up to 9 h, 59 mins, 59 s) or continuous operation. Timer operation for displaying the remaining time, continuous operation with display of elapsed time
- Pulse interval is adjustable in 0.5 s increments. Sonication and pause can be specified independently from 0.5 to 600 s
- Storage for 8 programs for running through one after the other or can be combined in any order
- An optional temperature sensor for monitoring the sample temperature is available (please order separately); depending on the setting, a warning signal appears when the limit temperature is reached or the ultrasound is switched off
- USB A, USB B and Ethernet connection
Delivery incl. GM 5200 ultrasonic generator, UW 5200 ultrasonic transducer, SH 200 G booster horn, TT 213 sonotrode with Ø 13 mm, L 5 mm (for volumes of 20 to 900 ml).Please order support frame and temperature gauge separately if required.
Technical Information
| Type | HD 5200 set |
| For max. volume | 900 ml |
| Performance | 200 W |
| Working frequency | 20 kHz |
| Power output control | amplitude 10 to 100% |
| Pulse range | work intervals 0,5–600 srest intervals 0,5–600 s |
| Mains connection | 230 V, 50/60 Hz |
