Description

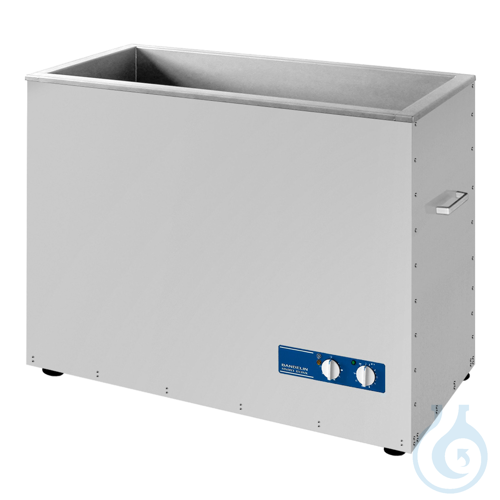

SONOREX TECHNIK W 300 ultrasonic bath, 40 kHz, with a capacity of 320,0 l is a large-volume ultrasonic cleaning system featuring a high freeboard oscillating tank developed especially for maritime environments. The extra-deep vibrating tank reduces the risk of cleaning liquid overflowing when the vessel moves. It is intended for cleaning components such as oil filters, fittings and cylinder heads. Interior working dimensions measure 1000 x 500 x 600 mm (length x width x depth). Drainage is provided by a three-way ball valve G 1 complete with hose and hose nozzles in galvanically coated brass, mounted on the left side. Ultrasonic peak power is 8000 W, heating power is 7200 W and rated power is 2000 W. Matching baskets, lids and cleaning or disinfection concentrates are available as accessories for a well-matched process setup. This bath from manufacturer Bandelin combines a 320,0 l tank volume with 40 kHz operation for thorough cleaning of technical parts. Net weight is 121 kg and gross weight is 153,275 kg. The high freeboard design supports stable containment during use.
This article is part of Ultrasonic baths & cleaners, in Ultrasonic baths & lab washers.
Key features
- Pack size: 1.0 pkg
- Frequency: 40 kHz
- Tank volume: 320,0 l
- Interior dimensions (L x W x D): 1000 x 500 x 600 mm
- Ultrasonic peak power: 8000 W
- Heating power: 7200 W
- Technical Information Sheet:
Recently viewed
You may also like
Questions about SONOREX TECHNIK MO 40 Oscillation device
What is this article?
SONOREX TECHNIK MO 40 Oscillation device is the article on this page. Luminix Health distributes Bandelin for laboratory use. It sits in Ultrasonic baths & cleaners, inside Ultrasonic baths & lab washers, in Lab instruments.
An ultrasonic cleaner drops parts into a bath where collapsing bubbles scrub joints and bores. Tank volume and ultrasonic power are the ratings. A basket keeps items off the tank floor, where the transducers are. The liquid is usually water plus a cleaning concentrate, not a strong solvent, unless the tank is rated for it.
An ultrasonic bath cleans by cavitation: the sound collapses tiny bubbles against the surface and lifts soil out of joints a brush cannot reach. The chemistry of the bath liquid still matters. A laboratory glassware washer is the machine that replaces hand washing when the load is large or the result has to be repeatable. Rinse water quality decides whether the glass comes out spotted. The ware being washed is listed under ISO laboratory glassware.
