Description

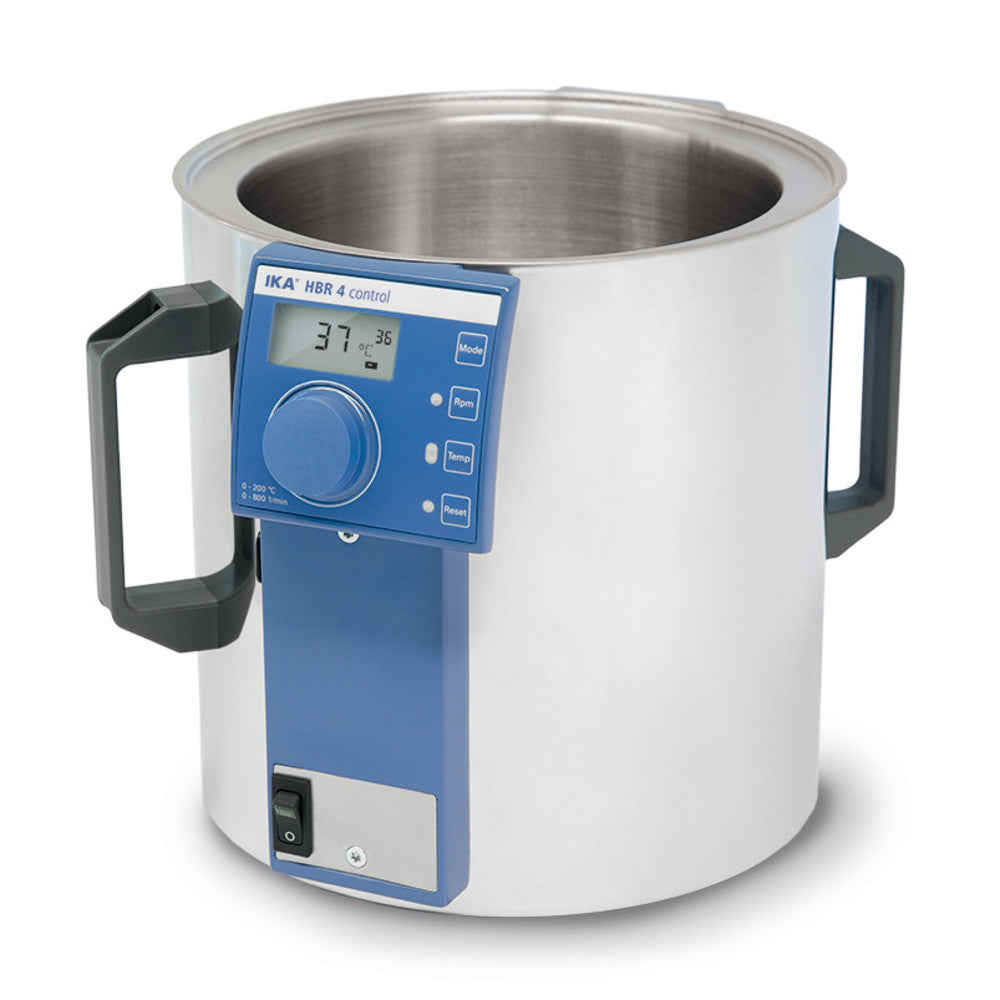

Water bath HBR 4 control with magn.drive, RT max. 200°C, 1000W,100-800/min, vol.4l
Effective volume 4 l. Interior free of heating coils (no components in the bath tub). Made of stainless steel. Available with low viscosity oil (50 mPa·s) or water as a heat conductor. Digital display for setpoint, actual and safety temperature as well as the speed. Integrated magnetic drive for rotating the heating medium, creating a better heat distribution in the bath. Heating element under the bath tank (no fittings in bath tank). With RS 232 port. Two handles. The heating bath can be operated in the medium itself using a temperature gauge for temperature control
Delivery incl. Pt 1000 stainless steel temperature measuring sensor.
Technical Information
| Type | HBR 4 |
| Bath volume | 4 l |
| Speed range | 100 to 800 rpm |
| Inner height | 160 mm |
| Inner Ø x H | 200 x 160 mm |
| Outer height | 250 mm |
| Operating temperature | room temperature up to +200 °C |
| Setting accuracy | ±1 K |
| Control deviation | ±1 K |
| Heating output | 1000 W |
| Weight | 4.4 kg |
| Mains connection | 230 V, 50/60 Hz |
