Description

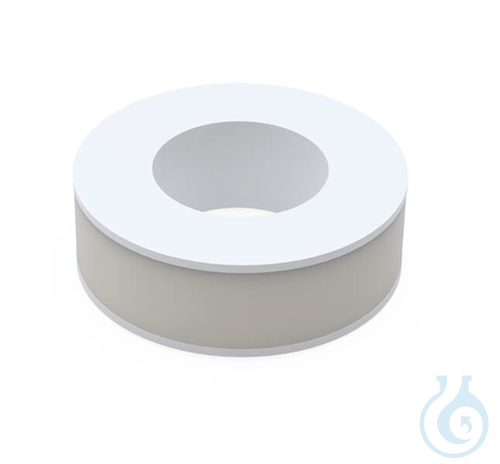

BOLA double-sided seals for GL 25 threads use a silicone ring with a double-sided PTFE cuff so that only PTFE meets the medium in service. Outer diameter is 22 mm, inner diameter 10,0 mm and height 6,6 mm, covering tube diameters from 9,0 mm to 11,0 mm. Compared with narrower-bore GL 25 variants, the 10,0 mm inner opening accommodates slightly larger tubing while retaining the same outer envelope and height. Pack size is 5 pieces with a net weight of 0,0024 kg per seal, suited to laboratory inventories of GL sealing parts. The PTFE wetted design delivers the chemical resistance associated with polytetrafluoroethylene at both sealing faces, while the silicone body provides the necessary compliance. Dimensions and GL 25 compatibility from manufacturer Bohlender match common laboratory glass and tubing practice, supporting straightforward installation in analytical and preparative apparatus. These seals are intended where double-sided PTFE contact and a defined tube range of 9,0–11,0 mm are required on GL 25 connections.
This article is part of Lids & seals, in Stoppers, caps & closures.
Key features
- Pack size: 5 pc(s)
- Thread size: GL 25
- Dimensions (Ø outer x Ø inner x H): 22 x 10,0 x 6,6 mm
- Suitable tube Ø: 9,0–11,0 mm
- Design: Silicone ring with double-sided PTFE cuff
- Material: (wetted): Polytetrafluoroethylene (PTFE)
