Multi- Heating mantle metal-cased PILZ®® -Classic-Line- LMG3ER 250-

Multi-size Heating mantle metal-cased PILZ® Series LMG3ER -Classic Line- for three round bottom flask sizes and with integrated power selector;Operating voltage 230 VAC; Nominal Power 360 W; Max. admissible operating temperature 450°C; For round bottom flask sizes 250-1.000 ml Ø 85-131mm

· Variable-volume, metal-cased heating mantle for three different round bottom flask sizes 250-1.000 ml Ø 85-131mm
· hand crocheted heating element made of glass silk
· powder-coated, robust metal housing with high chemical resistance
· unremovable warning labels with volume identification
· two-part design with liquid-tight top part
· all switches are protected against unwanted operationdesigned as safety switches

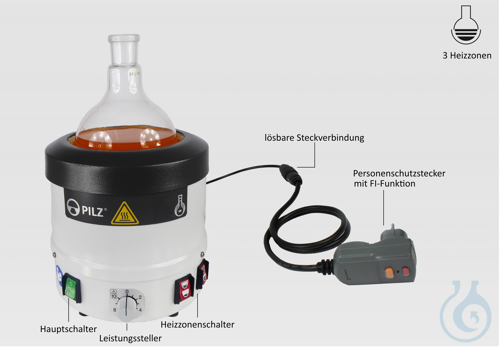

Device features
· master switch on/off
· integrated mechanical power selector
-> infinitely variable power (0-100%)
· one heating zone switch with integrated operation status light ''Heated''
-> heating zone 1 or heating zone 1+2 or heating zone 1+2+3
· detachable plug-in connection (cable lenght 0.50 m)
· including personal protection plug with RCD function
and cable with Schuko plug type E/F (cable length 1.00 m)
old item number: WHLMG3ER-230XX450-001000DE
